0-10V Modulating Valve: Working Principle, Advantages, and Application Guide

In the HVAC industry and automated fluid control, precise fluid regulation ensures operational efficiency and system stability.

The 0-10V Modulating Valve is a core component in automated fluid control systems.

This article will explain the working principles, control methods, and common types of modulating valves for procurement personnel.

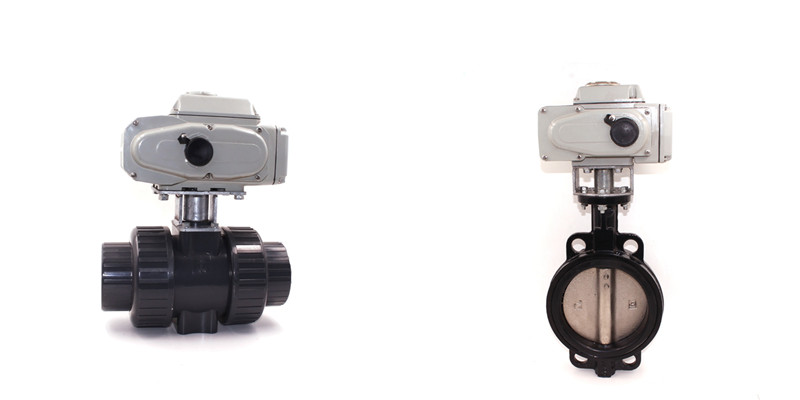

What is a Modulating Control Valve?

Unlike on-off valves, a modulating control valve can position the valve opening at any point based on the control signal.

The actuator can receive 0-10V analog signals from PLCs or DDCs:

At 0V, the valve is fully closed.

At 10V, the valve is fully open.

This angle adjustment capability enables the system to dynamically adjust flow rates in real time according to user requirements.

Advantages of the 0-10V Modulating Ball Valve

The Modulating Ball Valve offers excellent sealing performance and strong pressure resistance, making it highly favored by users.

1. High-precision proportional control

Actuators with angle adjustment capability enable precise positioning.

2. Superior switching capability

Compared to other types of control valves, ball valves offer exceptional sealing performance with extremely low leakage rates. This is particularly crucial for Modulating Water Valves, which demand high sealing integrity.

3. Long service life

The seat of the modulating ball valve experiences minimal wear, enabling it to withstand frequent opening and closing operations while reducing the occurrence of failures.

Applications of Modulating Water Valves in HVAC Systems

In chiller and boiler systems, the modulating water valve is key to achieving energy-saving goals:

Precise Temperature Control: Regulate indoor temperatures by adjusting the flow of cold and hot water through valves.

Reduced Energy Consumption: High-quality motorized valves significantly lower the system's energy consumption.

Dynamic Balancing: Modulating valves ensure balanced flow distribution across all devices.

How to Select the Right Modulating Valve?

When purchasing a modulating valve, users should consider the following parameters:

1. Flow coefficient: Valve specifications must match pipeline flow requirements.

2. Pressure rating: Valve body and actuator must withstand system operating pressure.

3. Electric actuator: Requires 0-10V or 4-20mA feedback signal for valve position monitoring.

4. Medium characteristics: Ensure valve body is suitable for the medium being handled.

Summary

The 0-10V Modulating Valve is the cornerstone of building automation and industrial pipeline control.

Whether you're seeking a high-quality Modulating Ball Valve or an HVAC Modulating Water Valve, Jinfeng Valve has the right product for you.
