0-10V vs. Floating Control: Which Motorized Valve is Right for Your Automation Project?

In Building Automation Systems (BAS), selecting the correct type of electric actuator is crucial. As a procurement manager, you may face this dilemma: Should you use a 0-10V Modulating Motorized Valve or a Floating Control Valve?

This article will compare these two control methods to help users make the right choice.







What is a 0-10V Modulating Electric Valve?(The 0-10V Modulating Standard)

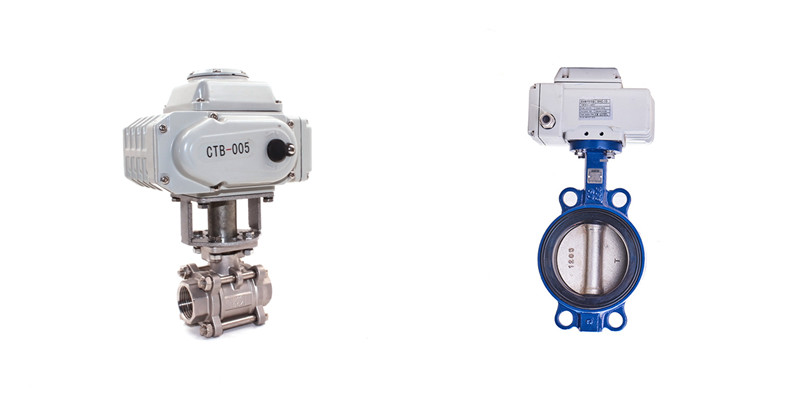

The 0-10V Modulating Motorized Valve is a common proportional control valve in industrial water treatment and commercial HVAC applications, capable of adjusting the valve opening angle via electrical signals.

Working Principle:

0V DC: Valve fully closed (0%)

10V DC: Valve fully open (100%)

5V DC: Valve remains at 50% opening

Product Advantages: This control method not only enables the valve to open and close but also allows precise positioning at any desired location. A high-quality 0-10V electric actuator can also be equipped with Position Feedback, enabling users to monitor the valve's actual status in real time for efficient troubleshooting.

What is a Floating Control Valve? (Floating / 3-Point Control)

Floating-point control, also known as 3-Point Control, differs from voltage-based control like 0-10V. Instead of using a voltage value, it employs two separate wires to control the valve's opening and closing.

Working Principle:

Contact A energized: Valve opens

Contact B energized: Valve closes

Power off: Valve remains at its current position without action.

Product limitation: The valve cannot be adjusted via control signals.

In-Depth Comparison: 0-10V Modulating vs. Floating Control

1. Precision & Accuracy

0-10V Modulation Type: Excellent

If you want to maintain room temperature within ±0.5°C or adjust airflow, the 0-10V Modulating Motorized Valve is the best choice.

Floating-Point Control: General

Floating control is prone to overshoot and is suitable for zone control where precision requirements are not high.

2. Energy Efficiency

0-10V Adjustable Type: More energy-efficient

It can adjust flow rates according to user requirements to prevent excessive pump operation. In flow control systems, 0-10V control is key to achieving energy efficiency standards.

Floating-point control: Less efficient

Frequent switching corrections may lead to energy waste and mechanical wear on actuators.

3. Wiring & Installation

0-10V Proportional Type:

Typically, three or five wires are required to control the positive and negative terminals of the power supply, control signals, and other functions. Building automation systems come standard with 0-10V output ports, making integration extremely convenient.

Floating-Point Control:

Typically requires three wires, with a relatively simple wiring method.

4. Cost Implications

Floating-Point Control:

The internal structure of electric actuators is simple, and their initial cost is slightly lower.

0-10V Adjustable Type:

The initial purchase cost is relatively high, but it delivers greater energy-saving benefits and lower maintenance expenses.

Selection Recommendations

Select 0-10V Modulating Motorized Valve

1. Your project is a hospital or high-end building

2. Building Management System (BMS)

3. Air Handling Unit (AHU), Fresh Air Unit (PAU)

4. Enhancing HVAC system energy efficiency

Select Floating Control

1. Simple fan coil unit (FCU)

2. Limited budget with minimal temperature control requirements

3. Supports relay output only
