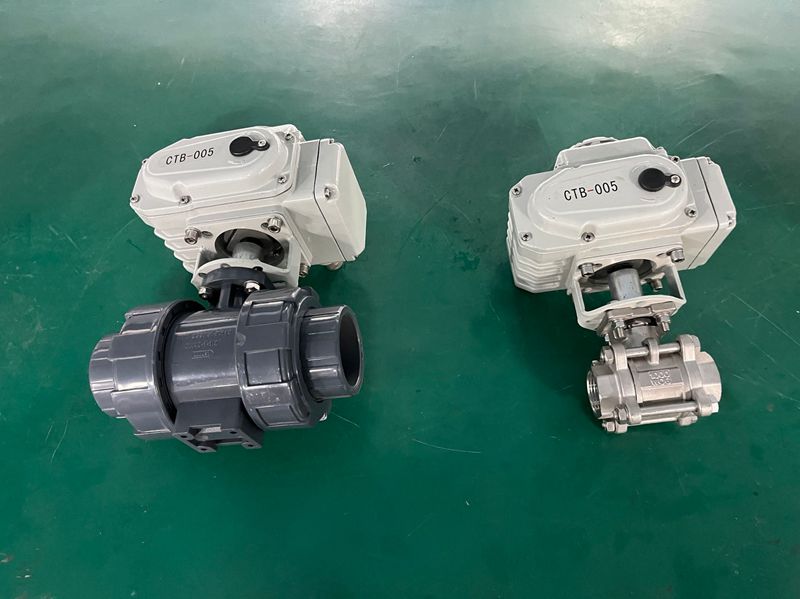

High-Performance 2 Inch Electric Ball Valve | 50Nm Motorized Control | Jinfeng Valve

In the modern field of fluid automation control, the 2-inch electric ball valve is a highly common component.

As a professional automation valve manufacturer, Jinfeng Valve produces this 50Nm high-torque electric ball valve, specifically designed for industrial fluid control.







Core Technology Highlights

1.50 Nm high torque output

This electric valve actuator delivers 50 Nm of torque. Compared to standard actuators, it operates stably under high-pressure conditions, preventing valve sticking.

2. DN50 Full-Bore Design

Our 2" electric two-way ball valve features a full-bore design, minimizing fluid resistance through the valve—a critical advantage for systems requiring high flow rates.

3. Excellent protection rating and durability

Our electric valve products feature excellent waterproof performance (IP65 rating), making them suitable for industrial environments with humidity, dust, and other challenges. Depending on user requirements, valve body materials can be selected from stainless steel, cast iron, carbon steel, PVC, and other options.

Product Specifications Overview

Specification	Technical Details
Port Size	2 Inch / DN50
Rated Torque	50Nm
Control Mode	On/Off Type / Modulating Type (4-20mA / 0-10V)
Applicable Medium	Water, Air, Oil, and Weak Corrosive Liquids
Operating Voltage	DC12V / DC24V / AC220V/AC380V (Optional)
Body Material	Stainless Steel 304/316 or High-quality PVC
Working Pressure	PN40 (Adjustable based on requirements)
Enclosure Rating	IP65 Waterproof and Dustproof
Response Time	25s - 30s

Why Choose Jinfeng's 2-Inch Electric Ball Valve?

As a leading supplier in the valve industry, we emphasize the importance of product quality. Each 50Nm electrically actuated ball valve undergoes over 200 opening and closing cycles and pressure testing before leaving the factory.

Extended service life: Long click lifespan reduces long-term maintenance costs.

Diverse installation options: Users may select standard flange or threaded connections, with thread options including BSP/NPT/G threads, compatible with multiple pipe types.

Customized Services: OEM/ODM customization available based on client requirements. Supports customization for different voltages and materials.

Summary

If you're seeking high-quality 2-inch electric ball valves or DN50 electric actuator valves, Jinfeng Valve is your trusted partner. Our valve products not only meet diverse engineering requirements but also significantly enhance your system's automation capabilities.
