2-Inch Electric Ball Valve Selection Guide

The 2-inch electric ball valve is a common size used in water treatment, automation, HVAC, irrigation, and other systems. This valve size serves as the ideal bridge between miniature valves and industrial-grade valves.

However, even among 2-inch electric ball valves, requirements for actuator torque, working pressure, switching time, and materials vary significantly across different operating conditions.

Selecting the correct 2-inch electric ball valve remains the biggest challenge for many valve procurement managers and engineers.

This article analyzes two actuator solutions for Jinfeng Valve's 2-inch ball valves to help you identify the most suitable option.

Why is the 2" ball valve the most commonly used industrial size?

1. High flow capacity, suitable for various applications including water treatment, agricultural irrigation, and chemical media.

2. Flexible installation options including internal threads, external threads, and flange connections

3. Compatible with a wide range of actuator models featuring moderate torque requirements

In low-pressure applications, low-torque actuators suffice, while large-scale water treatment plants and industrial-grade pipeline systems necessitate higher-torque actuators.

---

Two Actuator Solutions for 2" Motorized Ball Valves

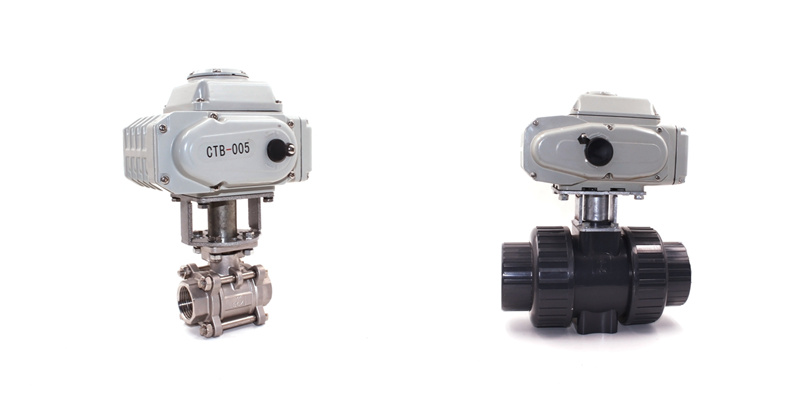

1. Industrial-Grade 2" Motorized Ball Valve

Product Link:https://www.jinfengvalve.com/product/en/2-inch-motorized-ball-valve-industrial-grade-ip65.html

Key Features:

- Higher Torque (50Nm)

- Working Pressure Rating: 0-4.0MPa (40bar)

- Multiple Voltage Options: 12V/24V/220V/380V

- IP65 Protection Rating, Waterproof and Durable

- Can be equipped with 4-20mA or 0-10V modulation capability

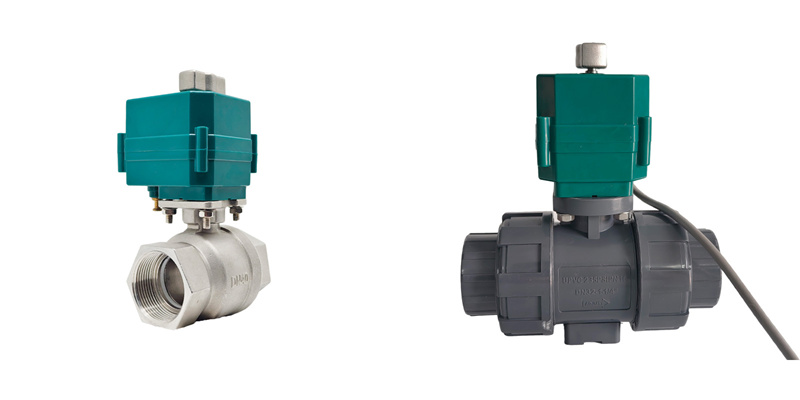

2. Compact 2" Motorized Ball Valve

Product Link: https://www.jinfengvalve.com/product/en/mini-high-torque-stainless-steel-motorized-valve-10nm.html

Key Features:

- Compact size, lower cost

- 10Nm torque meets most water treatment applications

- Fast switching speed, only 12 seconds

- Available with 4-20mA modulation capability

---

Comparison of Two Motorized Valves

	Industrial-Grade 2" Motorized Ball Valve	Compact 2" Motorized Ball Valve
Torque	High Torque: 50 Nm	Medium torque: 10Nm
Switching Time	Over 30 seconds	12 seconds
Protection Rating	IP65	IP65
Price	High	More affordable
Working Pressure	High-Pressure System: 4.0 MPa	Medium-low pressure systems: 1.6MPa
Application Areas	Industrial Applications	Small automation equipment, water treatment systems

---

How to Select Electric Ball Valves with Other Nominal Diameters?

In addition to 2 inches, the common sizes for electric ball valves range from 1/2“ to 4”.

Small-bore valves: 1/4“, 1/2”, 3/4“, 1”

Product Features:

It requires minimal torque for operation, typically 1.5-2 Nm.

Lowest cost

Medium-Sized Valves:1.5",2"

Product Features:

Compatible with both miniature high-torque actuators and industrial-grade actuators.

Large-Bore Valves: 2.5“, 3”, 4"

Product Features:

High Flow Capacity

Requires a high-torque actuator for operation

---

Summary: How to Select the Right 2-Inch Electric Ball Valve

Three Core Questions:

1. Is the pipeline operating pressure high?

High pressure → Choose industrial-grade valves

Medium/low pressure → Choose compact valves

2. Budget and operating conditions

High budget → Industrial-grade

Low budget → Miniature models

3. Other size considerations

Small diameters (1/4“, 1/2”, 3/4“, 1”) → Satellite actuators

Large diameters (2.5“, 3”, 4") → Industrial-grade actuators



If you're still unsure about which model to choose, you can provide me with details such as your working pressure, temperature, switching frequency, voltage, and other specifications. I will then recommend the most suitable model for you.
