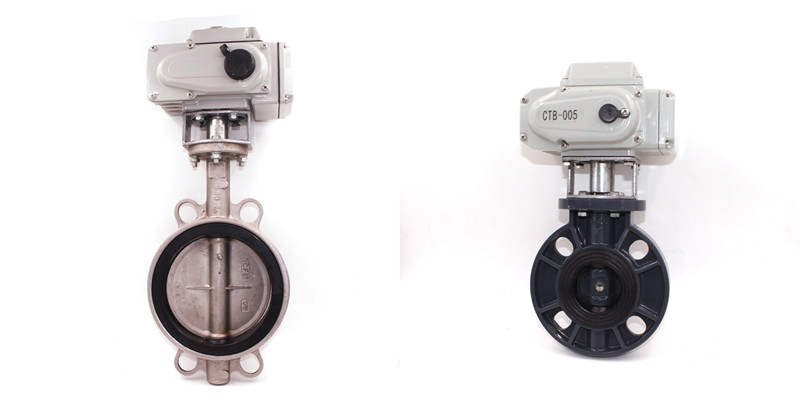

4 Inch Electric Butterfly Valve: Specifications, Applications, and Buying Guide



For large-diameter pipeline systems, the 4-inch electric butterfly valve is a highly prevalent valve type. Compared to ball valves, electric butterfly valves offer superior cost-effectiveness, compact design, and high automation levels. They enjoy extensive adoption in water treatment and industrial piping applications.

This article will guide you through procuring the appropriate 4-inch electric butterfly valve by examining technical specifications, compatible media, and actuator functionality.



Key Technical Specifications of the 4-Inch Electric Butterfly Valve

When procuring motorized butterfly valves, buyers must pay attention to the following parameters:

1. Butterfly Valve Material

Common materials include stainless steel, PVC, cast iron, ductile iron, and others, suitable for various applications.

2. Sealing Configuration

EPDM seals: Suitable for water and conventional media.

PTFE seals: Suitable for media with mildly corrosive properties.

3. Connection Method

Wafer Type

Flanged Type

4. Electric Actuator Specifications

Compatible voltages: 24V, AC220V, AC380V

Actuator functions: On/off switching, modulating, power-off reset, signal feedback

Protection Rating: IP65

Advantages of Butterfly Valves Compared to Other Valve Types

1. Compact structure with minimal space requirements

The butterfly valve features a short structural length, only one-third that of a gate valve of the same nominal diameter.

Its lightweight design significantly reduces the load on pipe supports for large-diameter pipelines.

2. Rapid actuation with minimal flow resistance

Compared to gate valves and globe valves requiring multiple rotations, butterfly valves complete opening and closing with a mere 90° rotation, enabling exceptionally fast operation.

When fully open, butterfly valves provide unobstructed flow pathways. In high-flow systems, they offer significantly better cost-performance than other valve types.

3. High Cost-Effectiveness

As pipe sizes increase, the purchase price of ball valves rises exponentially, while butterfly valves exhibit relatively moderate price growth. In industrial water treatment applications, butterfly valves represent the most cost-effective option.

How to Select the Right 4-Inch Electric Butterfly Valve

1. Check the medium properties

Determine whether the medium is water, gas, or corrosive liquid to select the appropriate valve body material.

2. Confirm Actuator Functionality

Determine whether modulation capability or power-off reset functionality is required, as this will dictate the type of actuator needed.

3. Supplier Qualifications

Select an electric butterfly valve manufacturer with robust production capabilities.

4. Long-Term Maintenance and After-Sales Service

Stable delivery schedules and reliable after-sales support are crucial for ensuring the long-term, stable operation of projects.

Conclusion

The 4-inch electric butterfly valve strikes an excellent balance between cost and performance. This type of valve enables stable and efficient fluid control in complex engineering projects.

If you're seeking an electric butterfly valve supplier, Jinfeng Valve can provide you with high-quality motorized valve solutions.
