Applications for 1-inch Motorized Valve

Industrial and Agricultural Automation Sector

Industrial Automation and Equipment: Motorised valves regulate the flow rate and on/off operation of liquids within industrial machinery, commonly found in automated mechanical systems and HVAC installations.

Smart Irrigation: On farms and in horticultural greenhouses, intelligent valves enable scheduled, metered irrigation for efficient water resource utilisation.

Water Treatment Systems and Pumps: Motorised valves serve as standard auxiliary equipment for pumps, facilitating automated water treatment processes by controlling flow direction and on/off functions.



Domestic Water Treatment and Commercial Buildings

HVAC: Within water circulation systems for central heating or underfloor heating, 1-inch motorised valves precisely regulate the flow direction and proportion of hot and cold water, ensuring optimal indoor comfort.

Home Security Protection

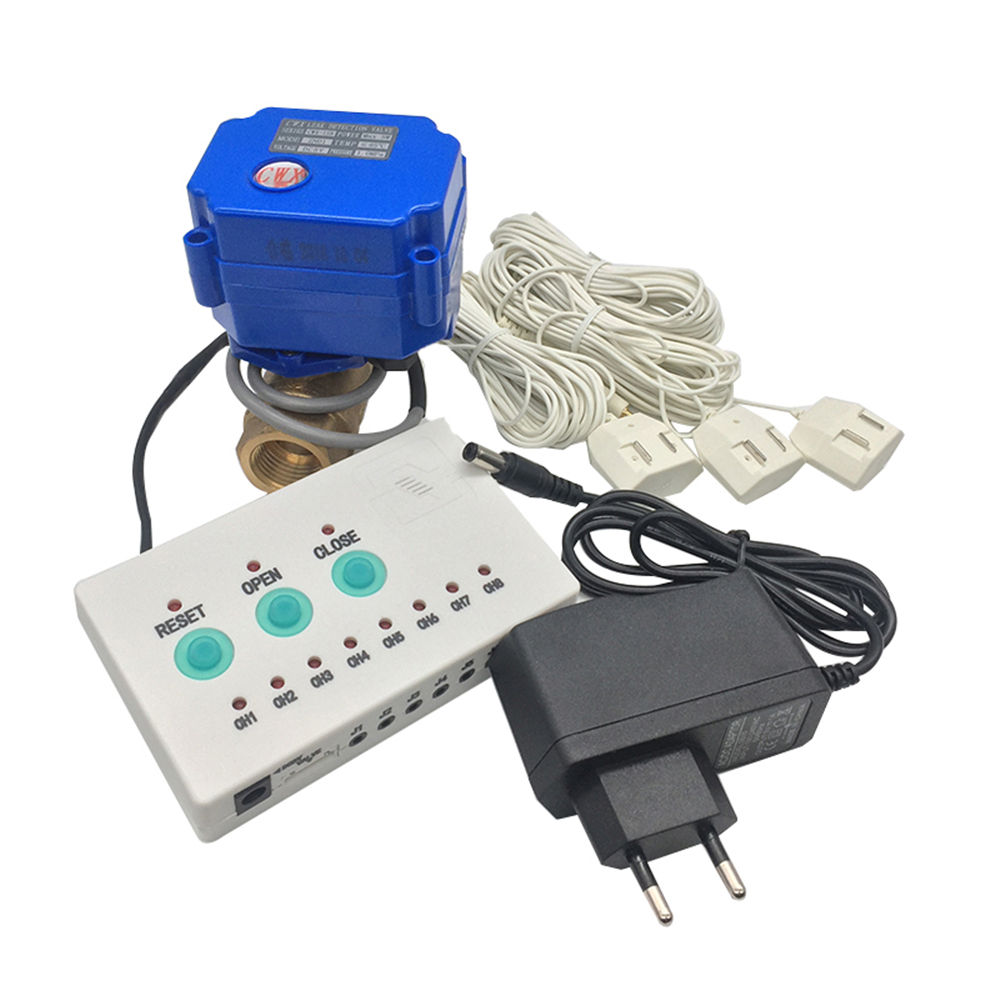

Leak Detection: When paired with leak detection alarms, sensors automatically shut off valves and trigger alerts upon detecting water leaks. This prevents substantial water damage and property loss.

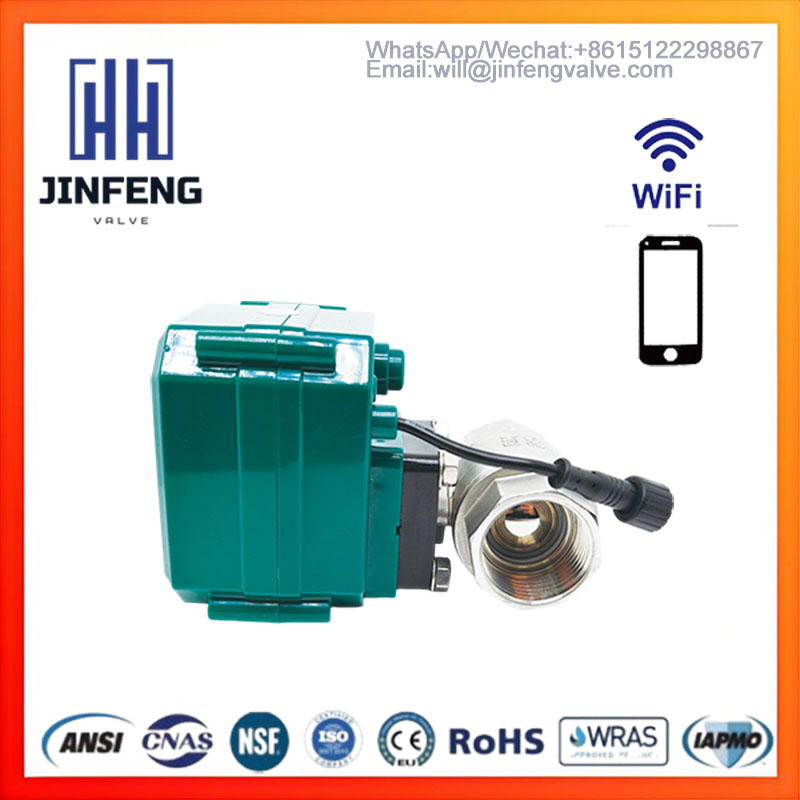

Smart Home Irrigation: For extensive flower beds and horticultural areas. The WiFi Smart Valve, featuring a timer function, enables automated watering for gardens and vegetation.

Recreational Vehicles (RV) and Special Vehicles



RV Water Supply and Drainage Systems: 1-inch motorized valves can be used for wastewater discharge on RVs, enabling remote one-touch control for intelligent wastewater disposal.



Precautions

Valve Body Material:Based on the characteristics of the flowing medium, including the presence of impurities and corrosiveness, select valves made from different materials such as PVC, brass, stainless steel, or cast steel.



Voltage Selection: Confirm whether the voltage required for the motorized valve is alternating current (e.g., AC 220V/AC 380V) or direct current (e.g., DC 12V/DC 24V).

Working Pressure and Medium Temperature: Different valve bodies and sealing methods enable motorized valves to withstand varying working pressures and temperatures. Select the appropriate motorized valve based on the specific requirements of the site conditions.

Protection Rating: Determine the required protection rating and sealing rating (e.g., IP65/IP67) for the motorized ball valve based on operating conditions.

Connection Selection: Confirm the pipe connection type—internal thread or external thread. NPT, BSP, or G thread.



Additional Features: Determine whether the tool application requires other supplementary characteristics, such as motorized valves with manual override, motorized valves with adjustable angles, or motorized valves with signal feedback.
