Can You Manually Turn Off a Motorized Water Valve?​

In modern water treatment systems, heating systems, and automated equipment, the “motorized water valve” has become the most common automatic control component.

Many buyers frequently ask a practical question when purchasing: Can you manually turn off a motorized water valve?

This text will cover the structure of the motorized water valve, the principle of its manual function, the method for manual shutdown, and the response procedures in the event of a power failure or malfunction.



What is the Manual Shut-off Function of a Motorized Water Valve？

A motorized water valve consists of a valve body and an electric actuator, which is typically powered by 12V, 24V, 220V, or 380V electricity to control opening and closing. In most operating conditions, the motorized valve is controlled by the power supply and does not require manual operation.

However, users will need to manually operate valves under the following circumstances:

Sudden power outage in the system

Control system failure preventing valve closure

Requirement to shut off valves during equipment maintenance

To address these special situations, many motorized valves incorporate a Manual Override feature, enabling users to close valves without power.

---

Which motorized water valves support manual operation?

Not all motorized water valves can be manually controlled.

1. Motorized Valves with Manual Override

These actuators feature a handwheel, manual knob, or hex interface mounted on top.

In the event of an emergency power outage, users can manually close or open the valve using this override mechanism.

2. Motorized Valves Without Manual Functionality

Many compact motorized ball valves do not support manual operation.

Primary reasons:

They are designed for automated control, not manual intervention.

Power supply stability is reliable, with minimal risk of power outages.

---

How to manually close a motorized water valve？

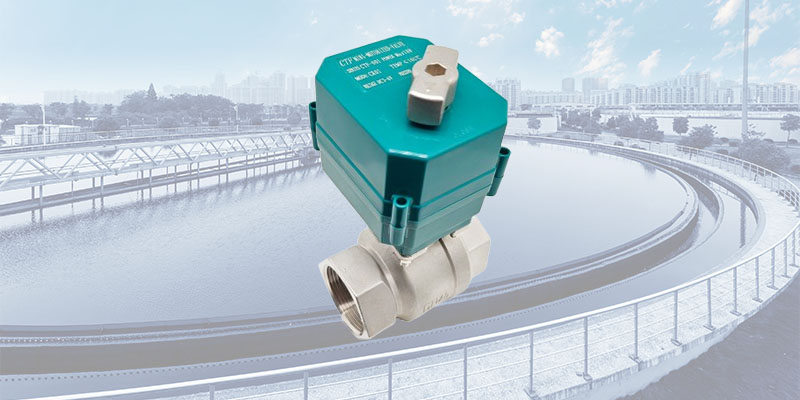

1. Manual knob operation

Many motorized water valves used in HVAC piping systems feature a knob on the actuator.

Customers simply rotate the knob to open and close the valve. This is the simplest and most common method.

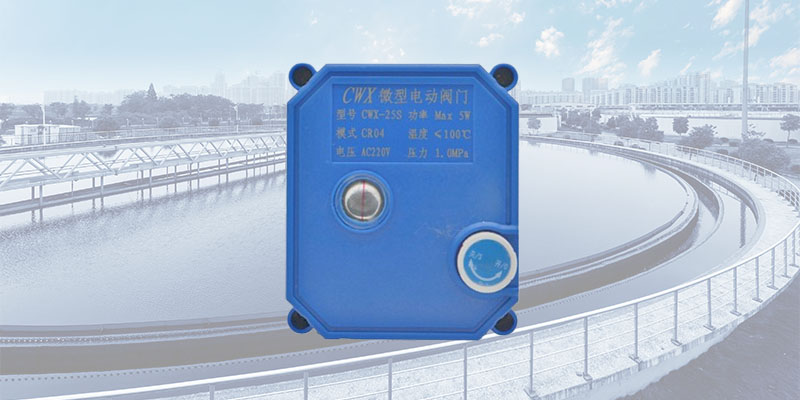

2. Using a Handwheel

Many miniature motorized ball valves feature compact actuators with limited space for knobs, necessitating the installation of a miniature handwheel for manual valve operation.

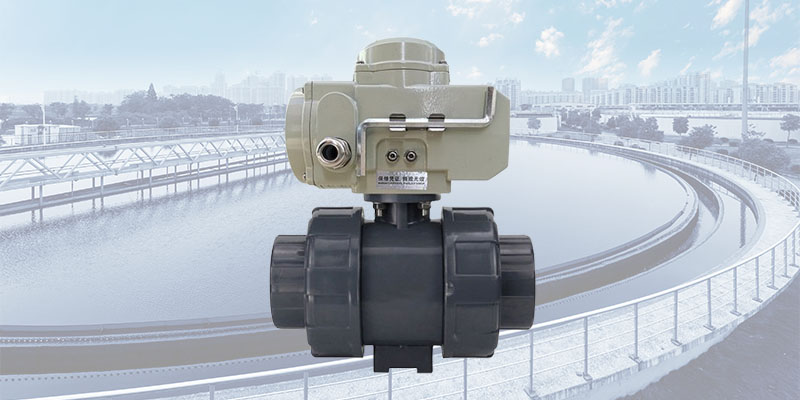

3. Hex Wrench

Industrial-grade actuators feature a hex manual interface. In the event of a power failure, users can insert a hex wrench to manually close the valve.

---

Are motorized valves suitable for frequent manual operation?

Although motorized water valves can be manually controlled, they are not suitable for frequent manual operation. Reasons include:

Manual operation can cause wear on internal gears

Certain models require manual reset to reactivate the automatic system

Manual functionality should be used as an emergency measure, not as a routine operating method.

---

What application scenarios require manual operation?

1. Water treatment systems

2. Industrial automation control

3. Projects requiring emergency power-off operations

4. HVAC

---

Summary: Can motorized water valves be manually shut off?

Yes, motorized water valves can be equipped with manual shut-off functionality.

This manual capability is crucial for situations such as malfunctions, power outages, or emergency repairs.

If a valve lacks manual functionality, users may achieve manual control by disassembling the electric actuator or other means, though this is not recommended for frequent use.
