Guide to 12V Ball Valve Actuators: Wiring, Types, Uses

In modern fluid control systems, the 12V ball valve actuator has become more popular than solenoid valves and pneumatic valves.

Many users ask: How do I wire an electric ball valve? What material should I choose for the ball valve?

This article provides comprehensive information, from working principles to wiring methods, helping you select the ideal motorized ball valve for your project.

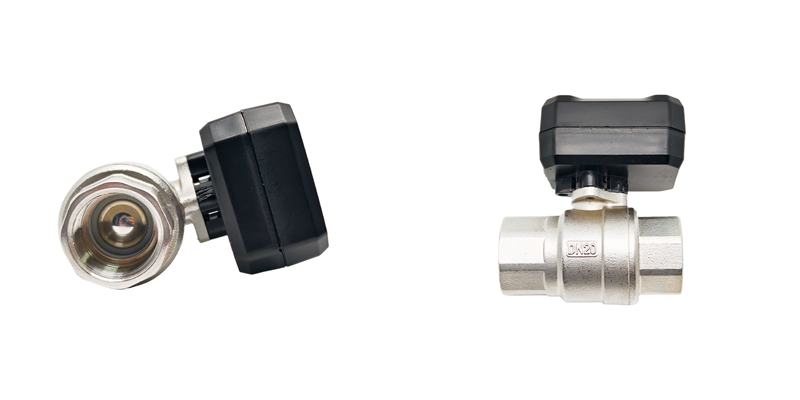

What is a 12V Electric Ball Valve Actuator?

A 12V ball valve actuator is an automated mechanical device that uses electrical signals to rotate the ball valve by 90 degrees for opening and closing. Unlike solenoid valves that need continuous power to stay open, the 12V electric ball valve uses electricity only during the opening and closing actions.

Key Advantages:

Energy Efficient: Cuts power internally when the ball valve is fully open or closed, preventing overheating.

High Flow Rate: The ball valve's full-bore design allows fluid to pass with minimal resistance.

---

Control and Wiring Methods

This is the aspect buyers focus on most when purchasing electric ball valves.

1. Two-Wire Automatic Reset

This is the simplest wiring method and the most commonly used by European and American customers.

Operation: When connected to a 12V power supply, the valve opens; when power is cut off, the backup capacitor automatically closes the valve.

Application: Systems requiring automatic closure during emergency power outages or malfunctions.

2. Three-Wire Control

This wiring method provides precise control.

Operation: It features three wires—one common wire, one wire for activation, and one wire for deactivation.

Advantages: This wiring method offers greater stability.

---

How to Choose the Right Type

When purchasing a 12V ball valve actuator, you'll find numerous options available.

1. Valve Body Material

Brass Electric Ball Valve: Lower cost, suitable for most HVAC systems.

Stainless Steel Electric Ball Valve: Long service life, high corrosion resistance, ideal for potable water systems or corrosive media.

PVC Electric Ball Valve: Lightweight and cost-effective. Suitable for residential water systems.

2. Thread Types

You must select the correct thread type—NPT (American standard), BSP (British standard), or G-thread (European standard).

3. Protection Rating

If the operating environment is relatively humid, ensure the actuator has an IP65 waterproof rating to prevent moisture ingress and subsequent malfunction.

---

Application Scenarios

Smart Home Automatic Water Valve: Works with leak detection devices to automatically shut off valves when leaks are detected.

Automatic Irrigation: Enhances the intelligence of water supply systems for gardens or agricultural applications.

RV and Camper: Manages tank drainage.

---

Summary

Once you understand the product specifications you need, selecting the right 12V ball valve actuator is straightforward.

Ready to get started on your project? Browse our high-quality motorized ball valves to find the perfect solution for your needs.
