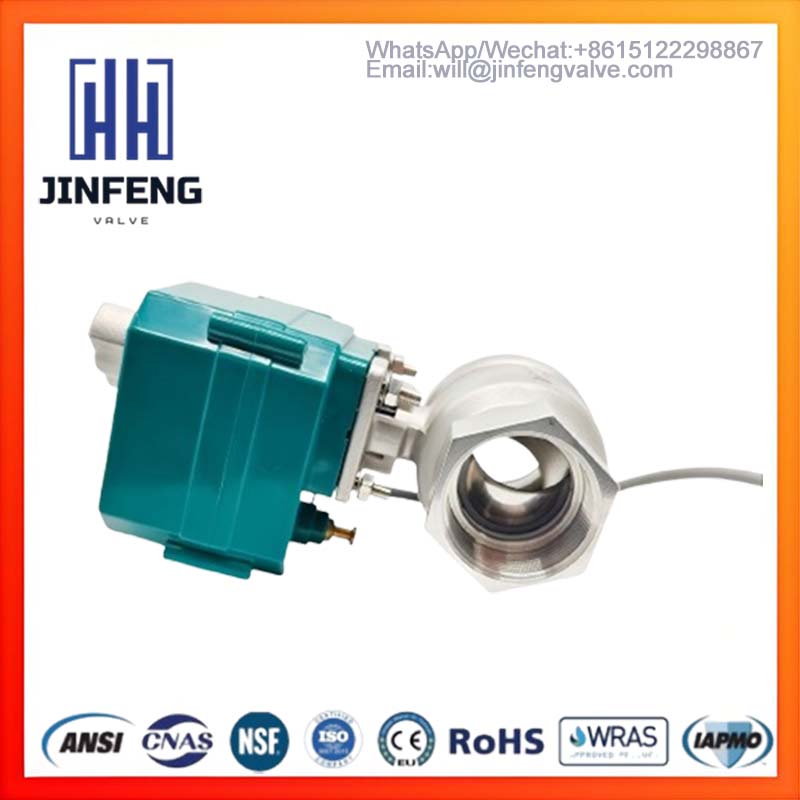

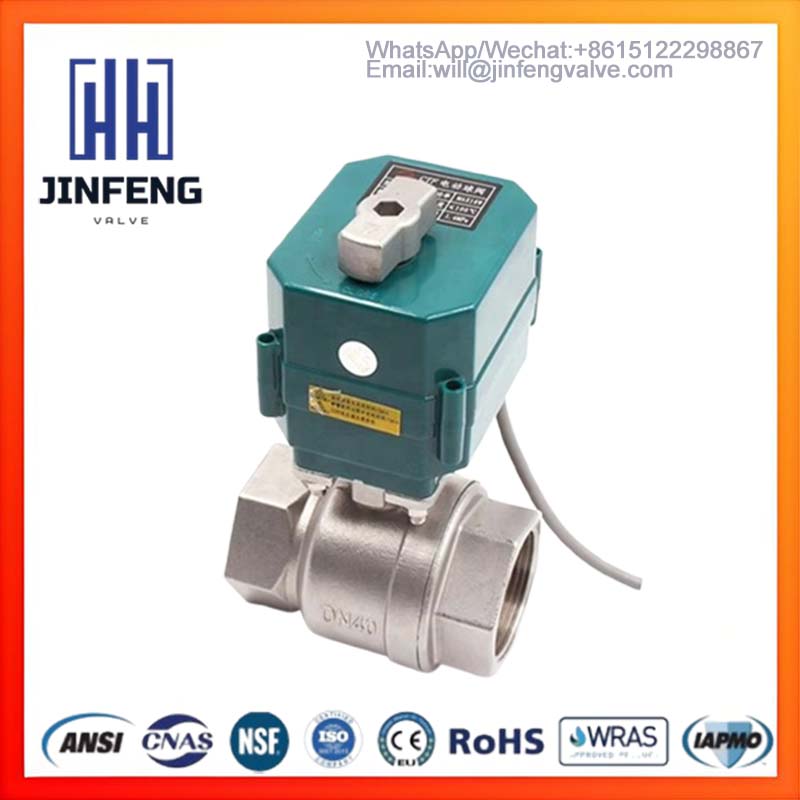

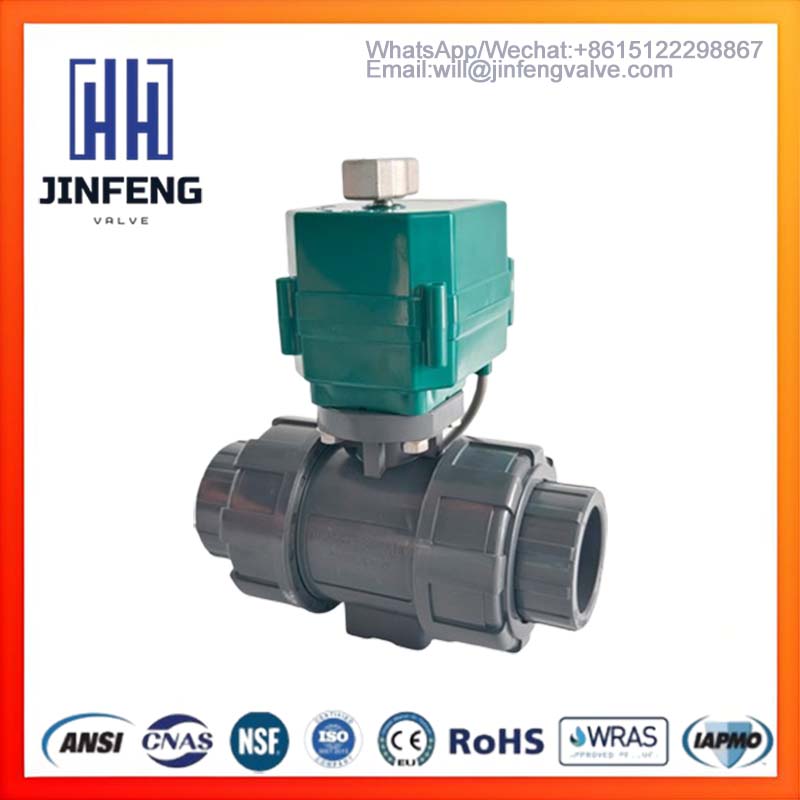

120V Motorized Ball Valves-High-Torque Actuator

Product Features

1.Simple shape, small size, all-metal gear driving, reliable performance, large torque, is the interface between civil and industrial-grade valve as intermediate products, the valve ball sealed structure with a float. Therefore no dripping and suitable for heavy dirt and long-term non-action occasions.

2. Particularly electrical and mechanical double limit. Since accurate positioning, high consistency.

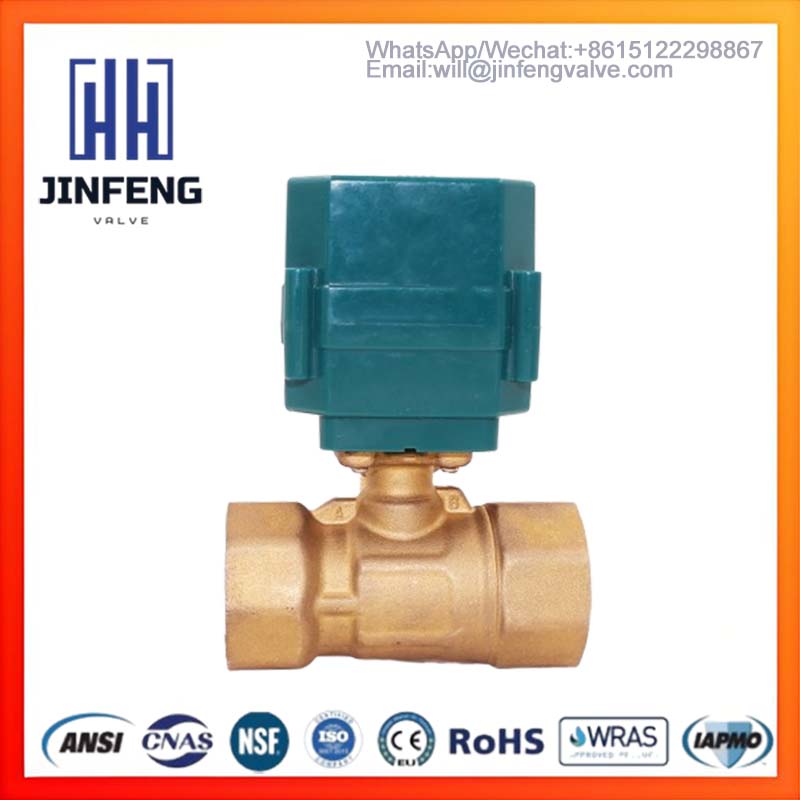

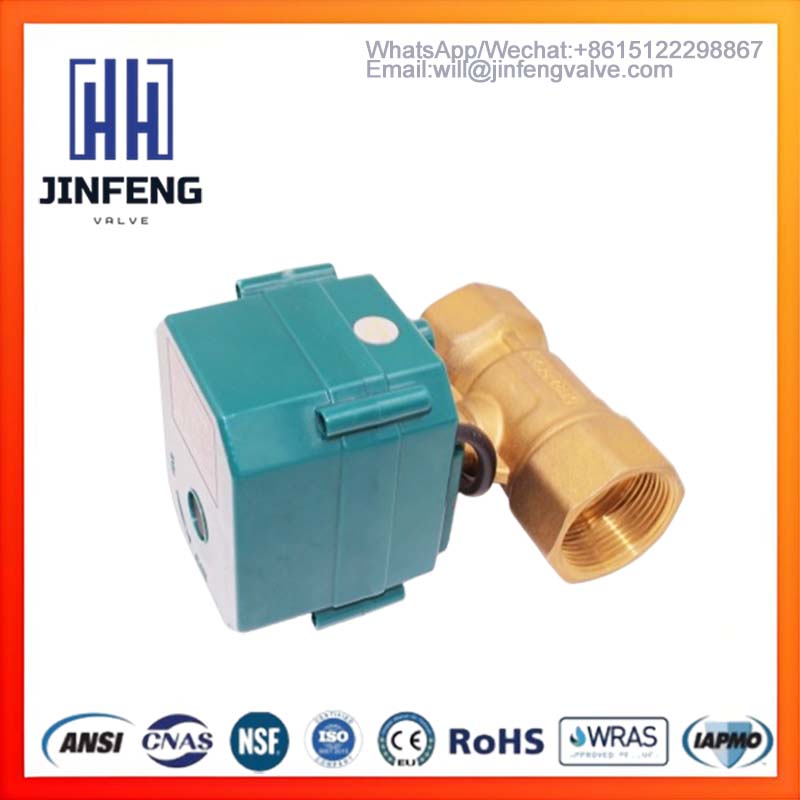

3. The connection of actuator and valve belong to ISO5211 standard, Flange type F03 and F05  convenience for user-selectable valve body. And supply Brass, stainless steel ball valve and PVC ball valve, IP65 Protection class, can be used in a relatively humid environment.

4. Position indicator and manual override function ( Emergency switch for sudden power failure or accident emergency )

120V Motorized Valve Wiring Diagram

CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V

1. Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.

CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V

1. SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.

Applications

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

About us-TIANJIN JINFENG VALVE CO.,LTD.

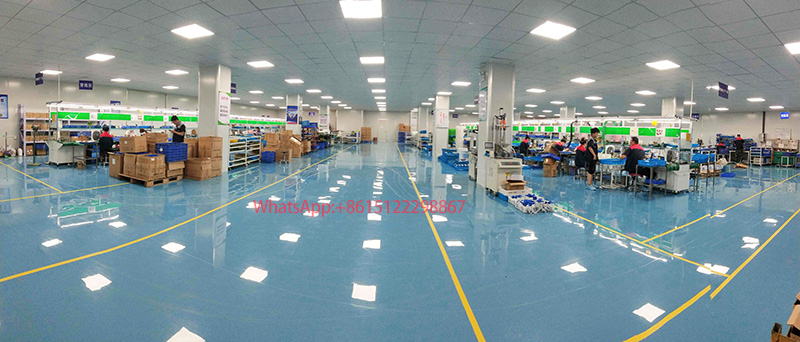

Tianjin Jinfeng Valve Co., Ltd. is a specialized manufacturer of motorized valves. As one of the pioneering enterprises in Tianjin's valve industry, the motorized valve factory occupies 50,000 square meters and features ten independent production workshops, supporting efficient and scalable manufacturing processes.

The company has received multiple commendations from Tianjin municipal government departments and holds international certifications including ISO9001, CE, RoHS, and NSF61. Its products are exported to numerous countries and regions worldwide.

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.
