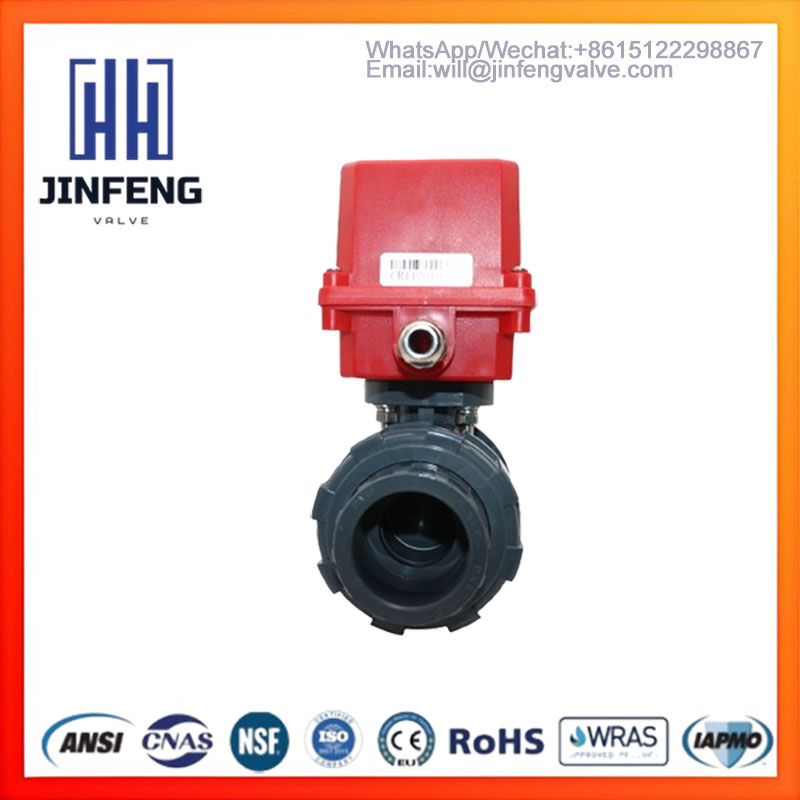

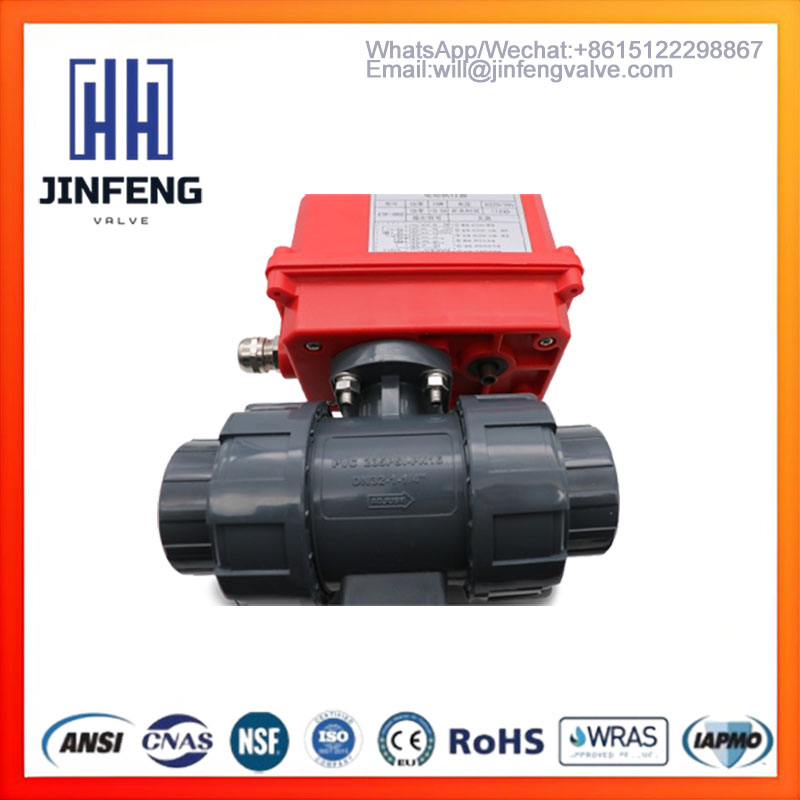

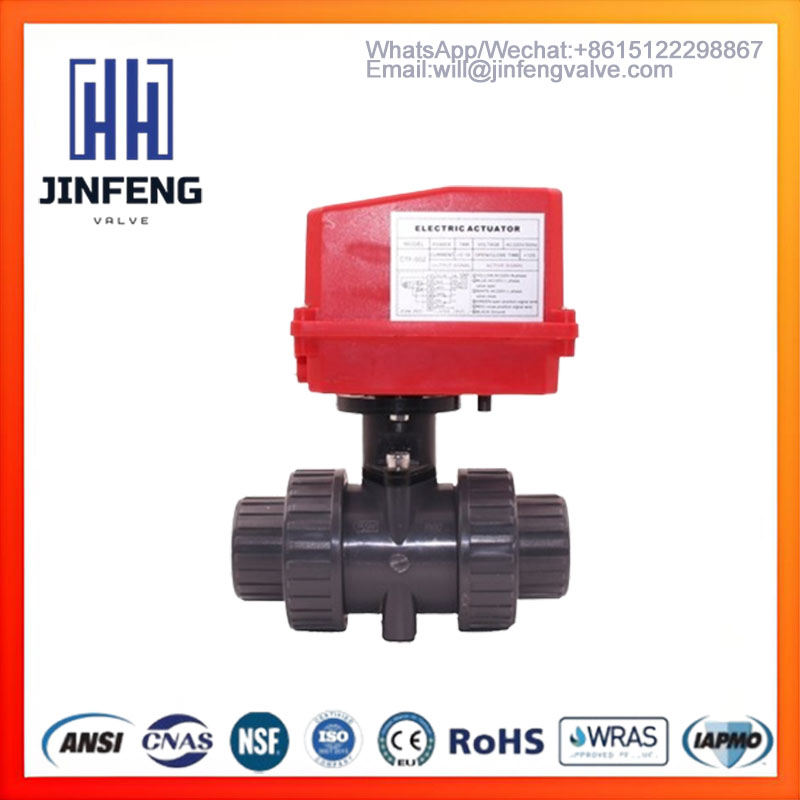

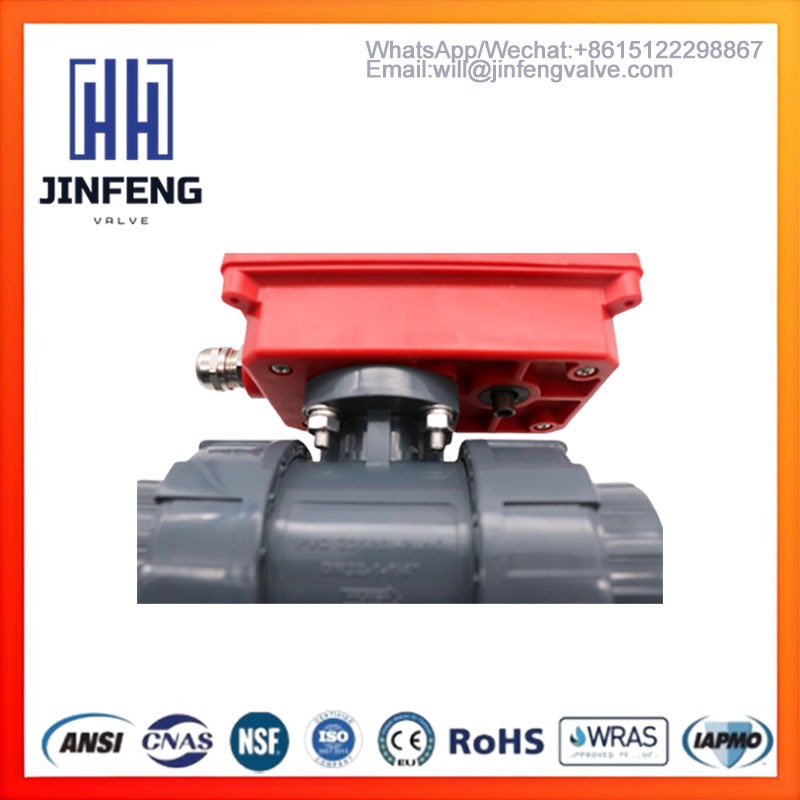

2 Way Motorized Valve|Water Treatment Ball Valve|220V
2 Way Motorized Valve|Water Treatment Ball Valve|220V 2 Way Motorized Valve|Water Treatment Ball Valve|220V 2 Way Motorized Valve|Water Treatment Ball Valve|220V 2 Way Motorized Valve|Water Treatment Ball Valve|220V 2 Way Motorized Valve|Water Treatment Ball Valve|220V

2 Way Motorized Valve|Water Treatment Ball Valve|220V

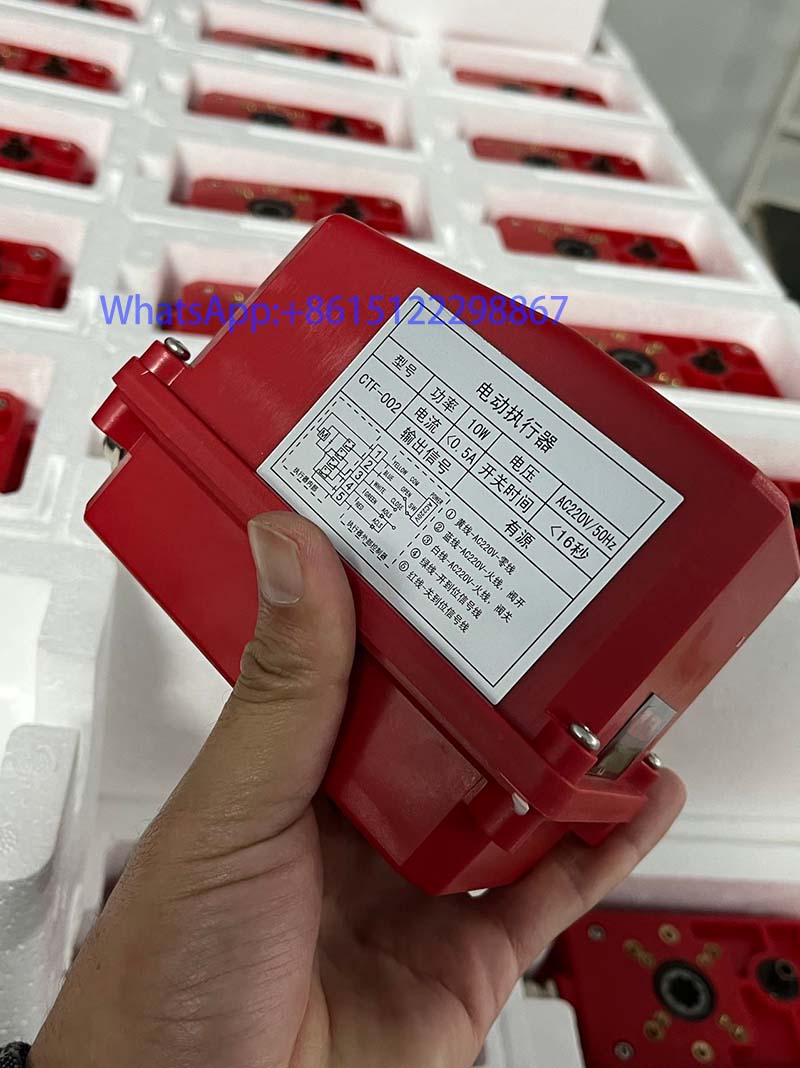

Product Attributes :

Voltage:AC220 DC220V

Working pressure: Max1.6MPa

Output torque:20NM

Adapting caliber:DN15-DN50

Switching time:16s

Medium temperature:0-50°

Valve metarial:Stainless Steel  UPVC/CPVC  Cast Iron

Product Description

Product  Features:

1.The product is light and compact, adopts machined gear transmission structure, has large output torque, stable operation and low noise

2.This product adopts a manual and electric integrated design and has a transparent window, so the valve switch status can be seen at a glance.

3.It adopts double sealing structure, sealing grade IP65, and adopts thread, union, flange and other connection methods, which can be quickly assembled without the use of special tools.

4.The valve body material has strong corrosion resistance and a wide range of applications

5.The product has a compact structure. It is wear-resistant, easy to disassemble, and convenient for inspection and maintenance.

6.Active and passive signal outputs are available

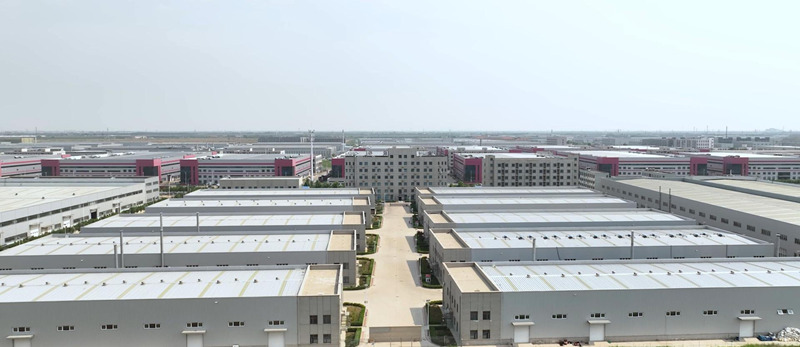

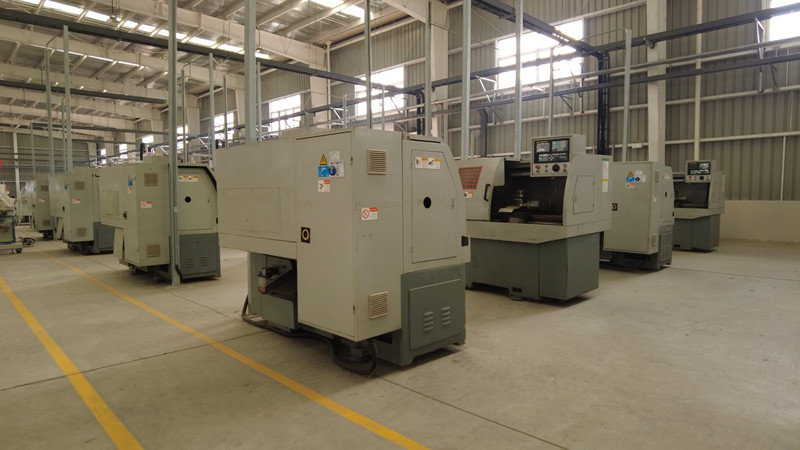

Our Factory

Located in Tianjin, China, Tianjin Jinfeng valve company have been specializing in electric ball valve and butterfly valve industry for 20 years. Equipped with a professional R & D team, we have won a number of technology patents. Our products have adopted ISO9000:2000, CE, ROHS, NSF61 certifications. With reliable quality and competitive prices, they have earned a good reputation among the customers from all over the world.

Our motto is Innovation, Simplification, Efficiency. Our mission is to meet customers’ needs with quality products and professional service. We look forward to building a sustainable and mutually beneficial cooperative relationship with you!
