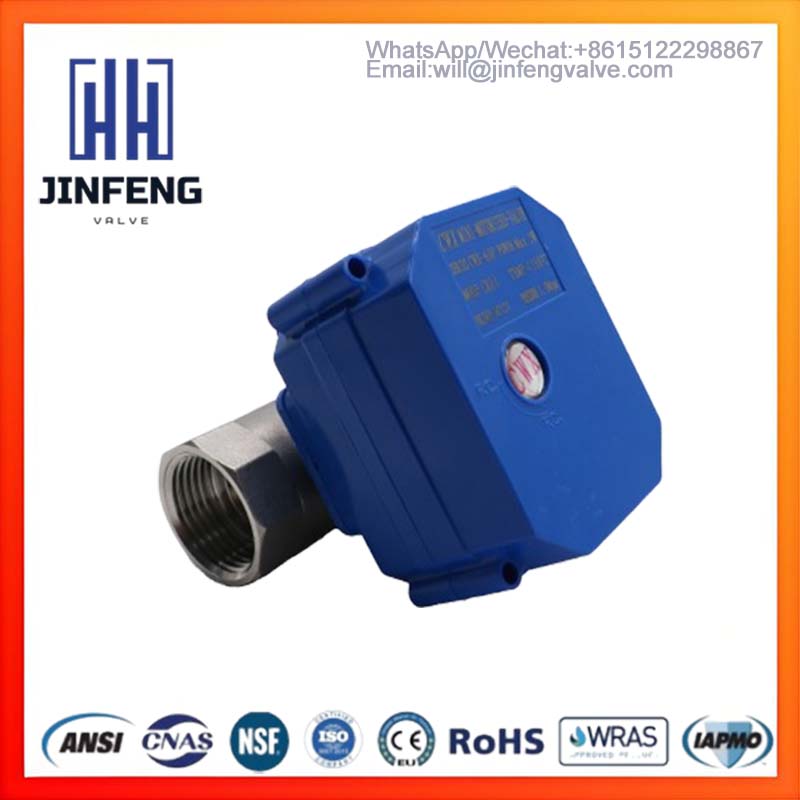

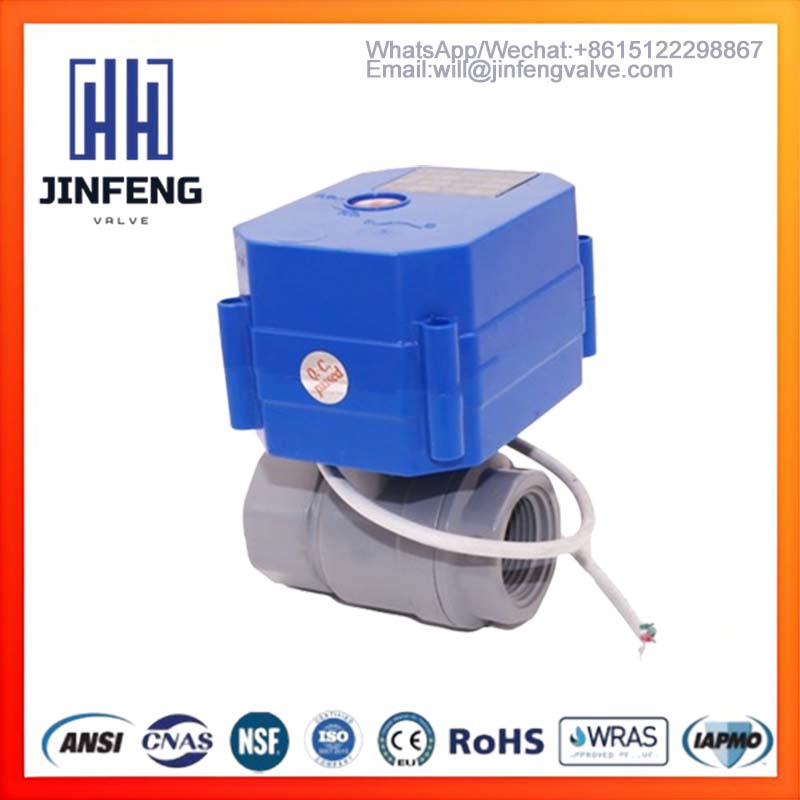

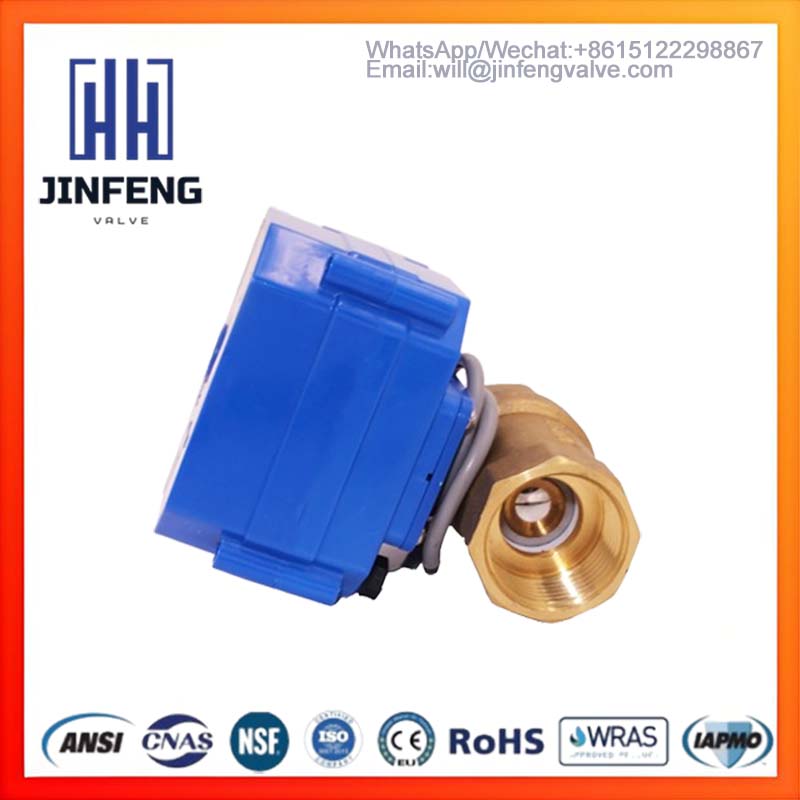

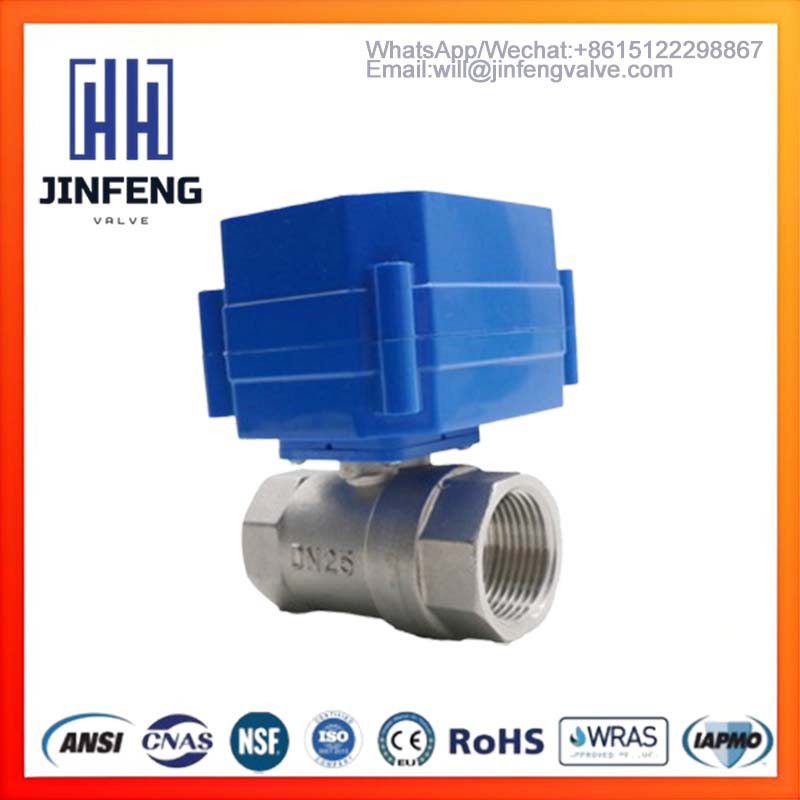

220V Compact High-Torque Motorized Ball Valve

Product Features

1.For 2-wire reverse polarity and 3-wire models, the valve is de-energized when fully open or closed. Other models may use a negligible amount of power when fully open, and the 5-wire model uses energy when closed to keep indicator lights operational. Refer to the specifications sheet for detailed information.

2.Electrical and mechanical limit switch design, accurate positioning, high consistency, stable operation of actuators

3.Automatic power-off when fully open/fully closed, long service life, service life up to 100,000 times

4.Multi-angle assembly, convenient for space allocation and easier to use

5.Float structure, no leakage, high flow rate, two-way valve

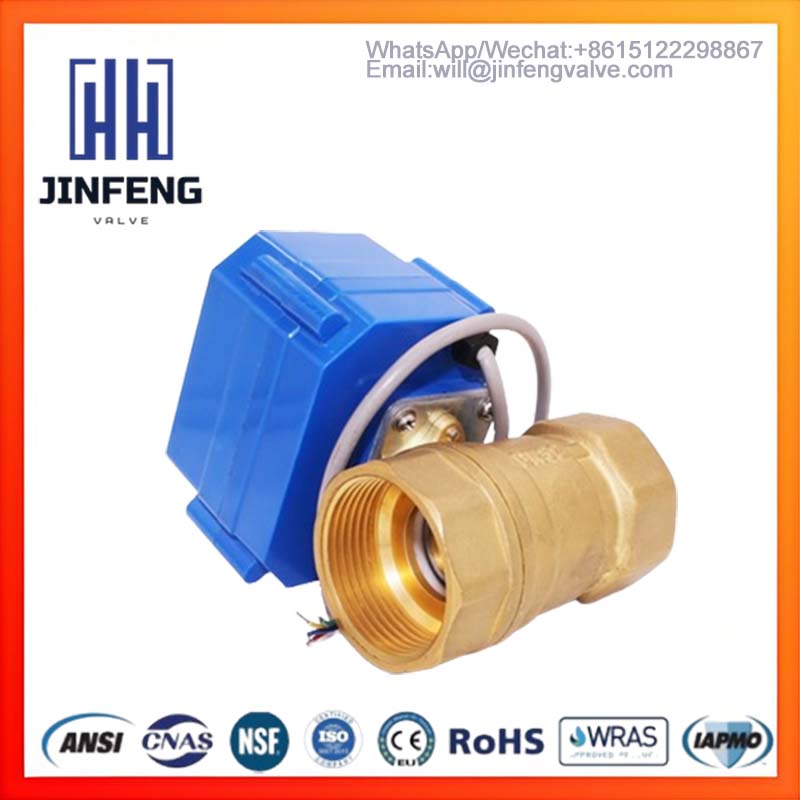

6.Protection rating IP65, can be used in humid conditions

220V Wiring Diagram for Motorized Ball Valve

CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V

1.Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.

CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V

1.SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.

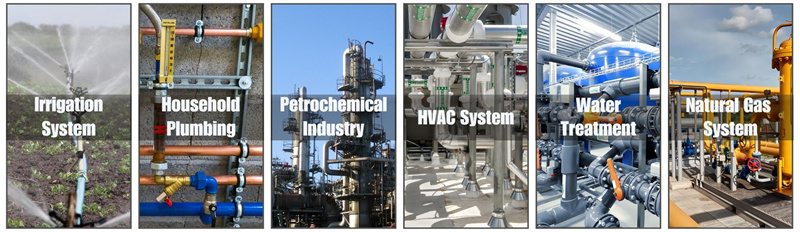

Application Scenarios

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

About us-TIANJIN JINFENG VALVE CO.,LTD.

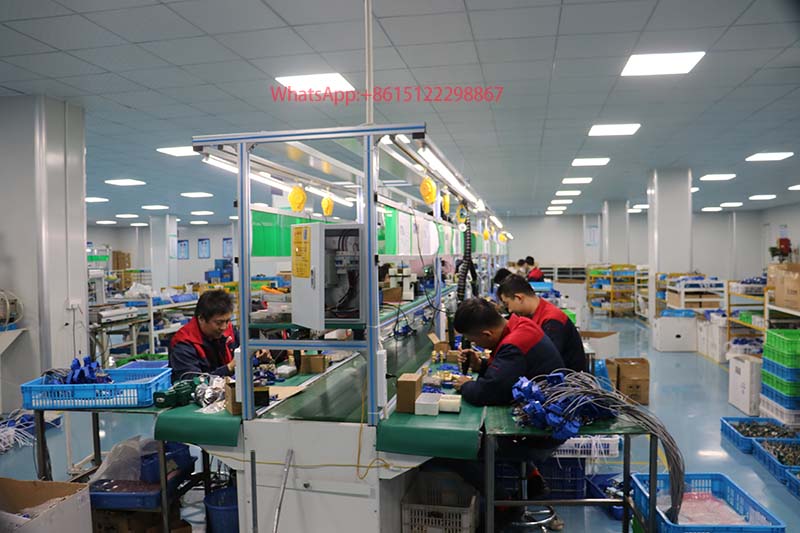

Tianjin JINFENG Valve Co., Ltd. is a leading manufacturer specializing in motorized and actuated valves, and stands as one of the pioneering companies in Tianjin's valve industry. With a facility spanning 50,000 square meters, JINFENG operates ten independent production workshops, supporting highly efficient and scalable manufacturing processes.

The company has been recognized with numerous letters of commendation from municipal government departments in Tianjin. Our certifications include ISO9001, CE, RoHS, NSF61, among others, and our products have been exported to various countries and regions across the globe.

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.
