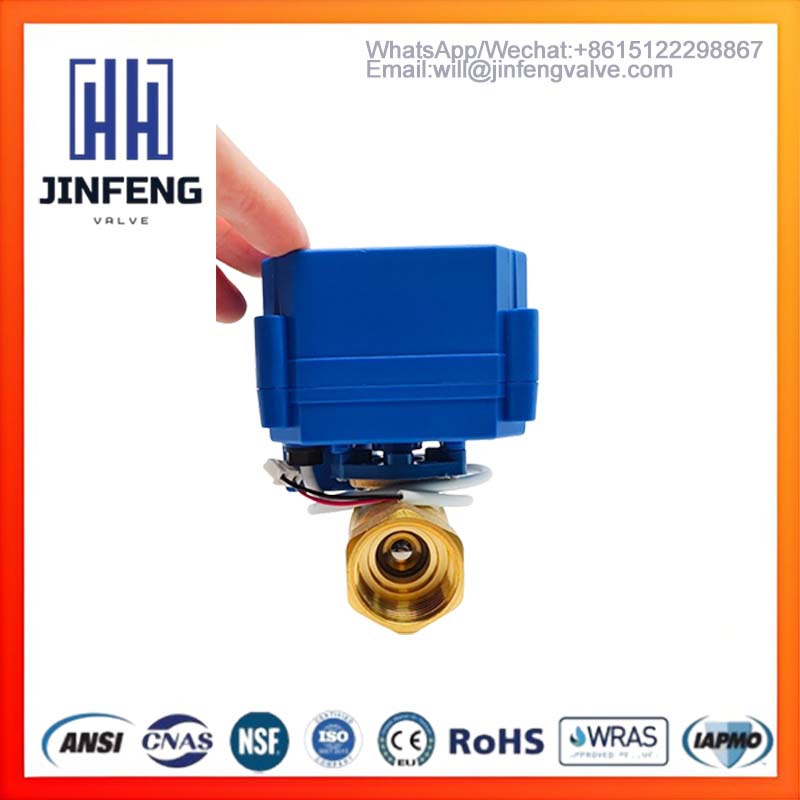

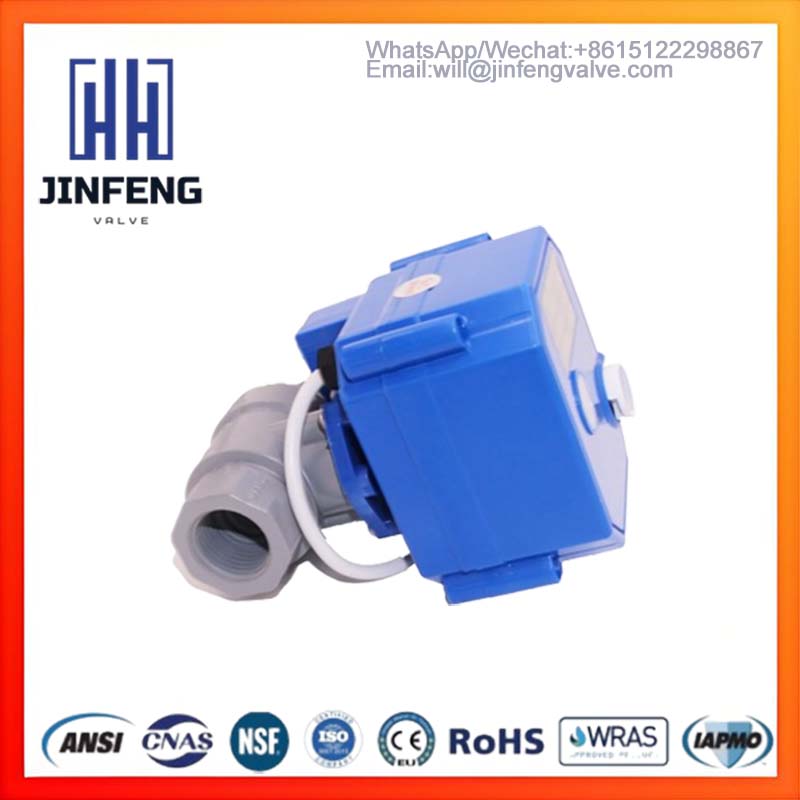

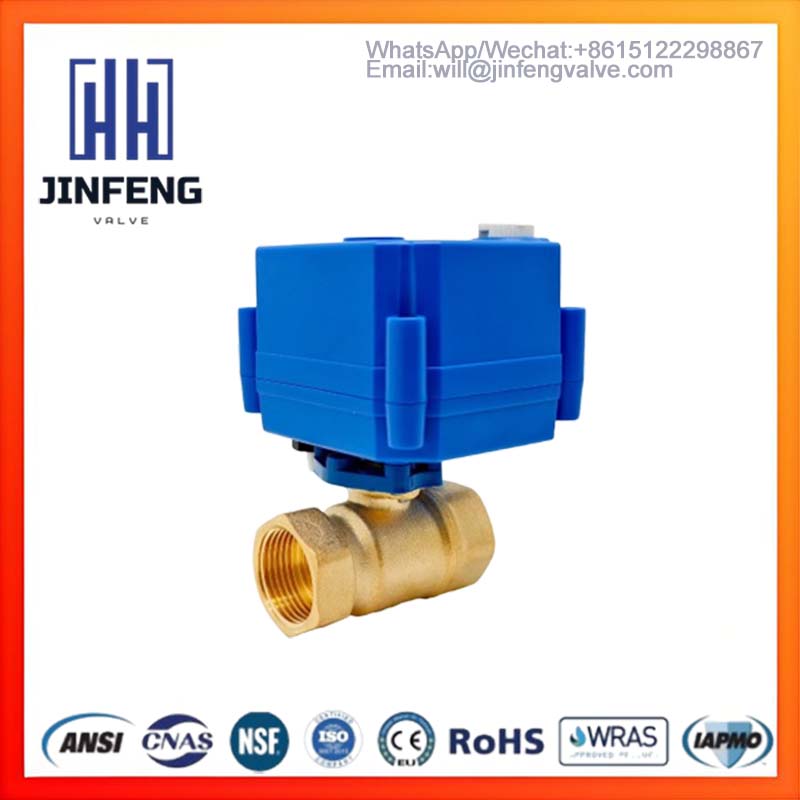

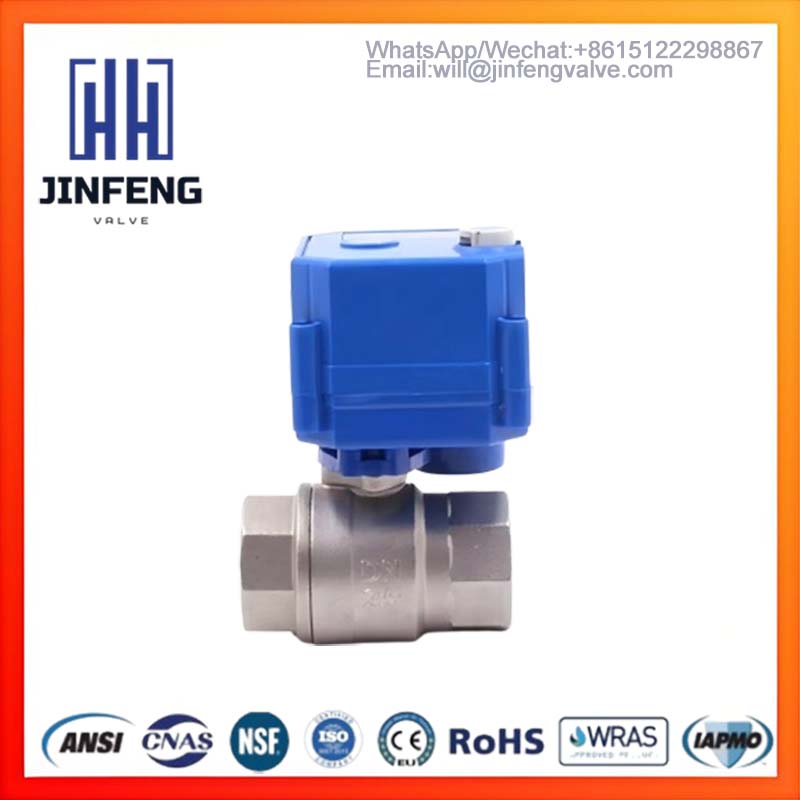

12V Motorized Ball Valve with Manual Override

Product Features

1.POM and powder metallurgy material combined reduction mechanism, stable and reliable performance

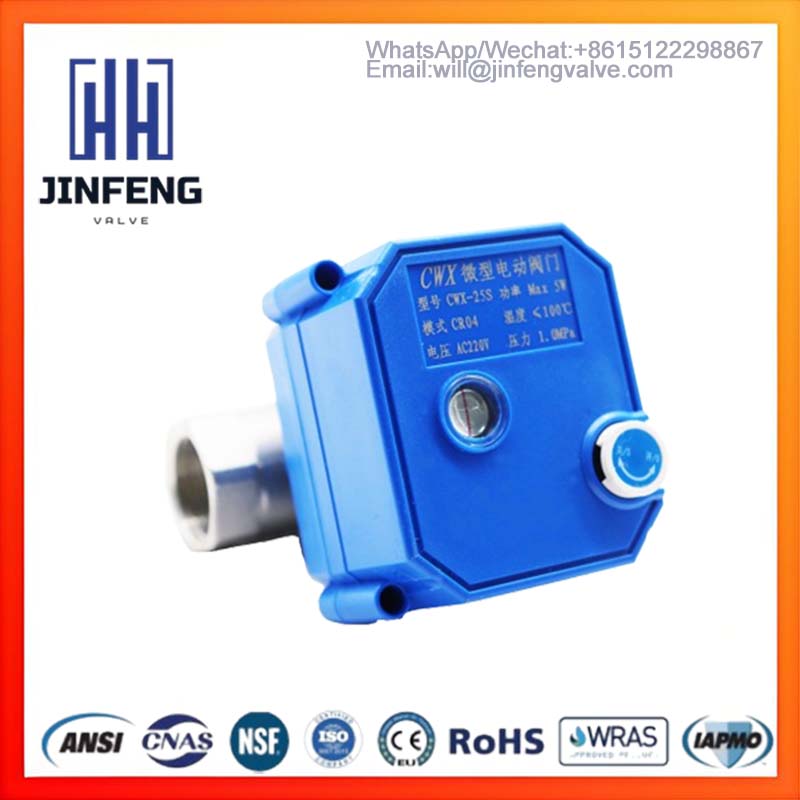

2.In the event of a power outage, the valve can be manually operated by turning the knob, making it easy to control and respond to special situations.

3.Compact design with switch indicator window, allowing for visual confirmation of the valve's on/off status, enabling intuitive monitoring of the valve body's operational state.

4.Straight-through ball valve, high flow rate, partial inlet and outlet, good sealing performance, protection rating IP65

---

12V Wiring Diagram for Motorized Ball Valve

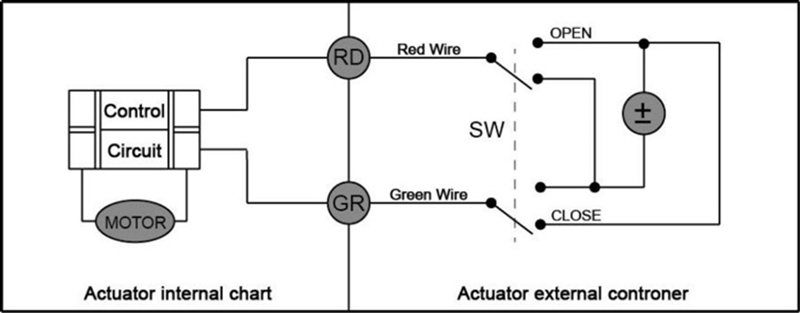

CR01（two wires and reverse polarity) Voltage: DC3-6V/DC12V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.

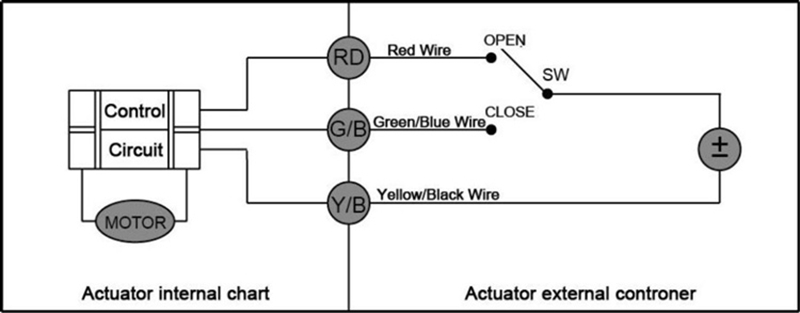

CR02 (three wires two wires control) Voltage: DC3-6V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V



1. Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V



1. SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.

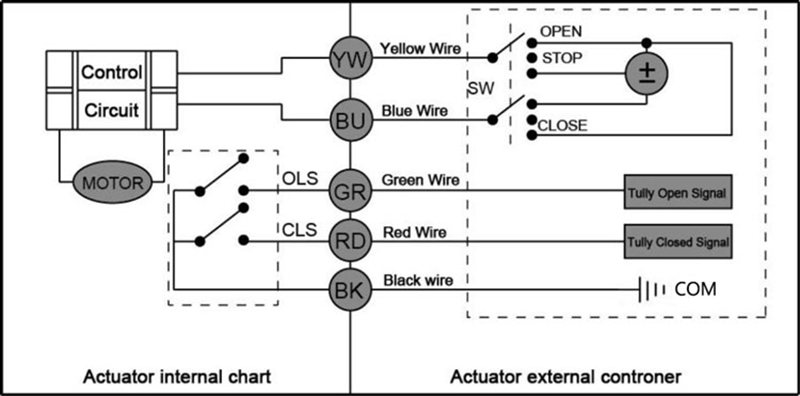

CR05 (five wires, micro controller with feedback signal) Voltage: DC3-6V/DC12V/DC24V



1.Connecting SW to OPEN, then valve open, getting the position and OLS connected, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
2.Connecting SW and CLOSE , then valve close, getting the position and CLS connected, the controller tested and find the signal of ACLS, the valve remains fully close position, mean while power off automatically.

---

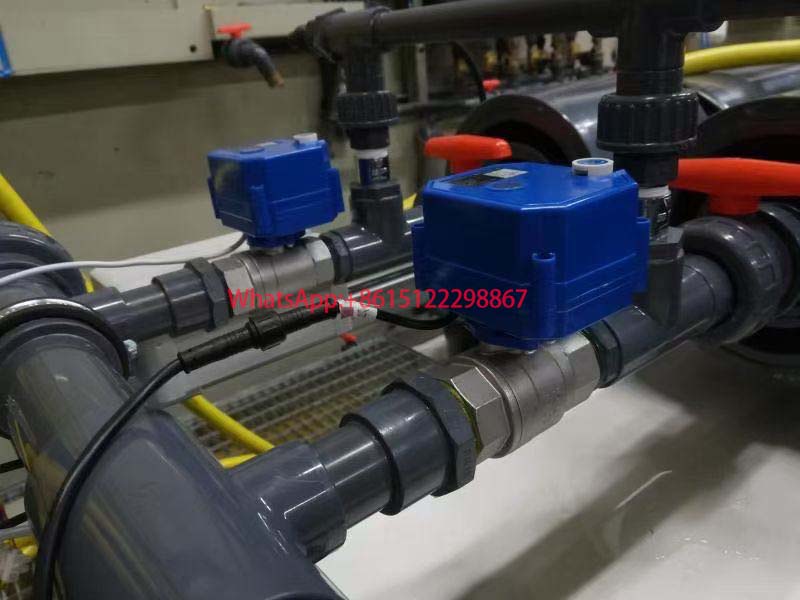

Applications

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

---

About us-TIANJIN JINFENG VALVE CO.,LTD.

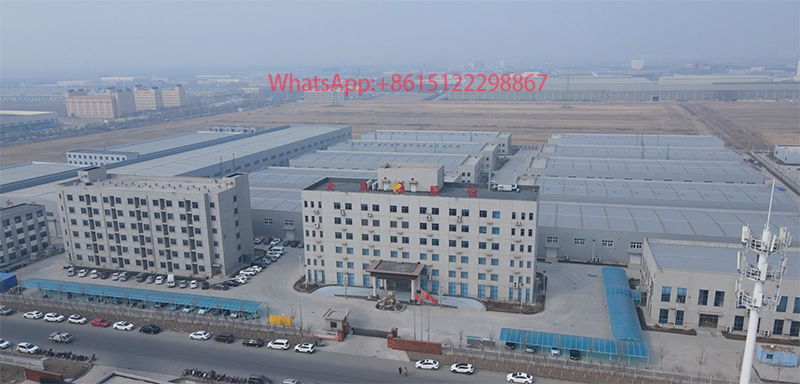

Tianjin JINFENG Valve Co., Ltd. is a leading manufacturer specializing in motorized and actuated valves, and stands as one of the pioneering companies in Tianjin's valve industry. With a facility spanning 50,000 square meters, JINFENG operates ten independent production workshops, supporting highly efficient and scalable manufacturing processes.



The company has been recognized with numerous letters of commendation from municipal government departments in Tianjin. Our certifications include ISO9001, CE, RoHS, NSF61, among others, and our products have been exported to various countries and regions across the globe.

---

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.

---
