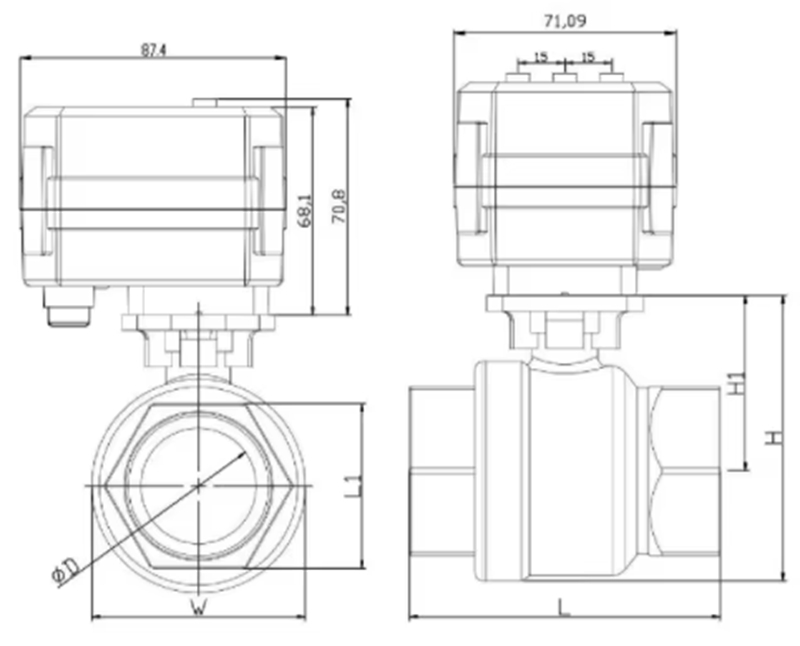

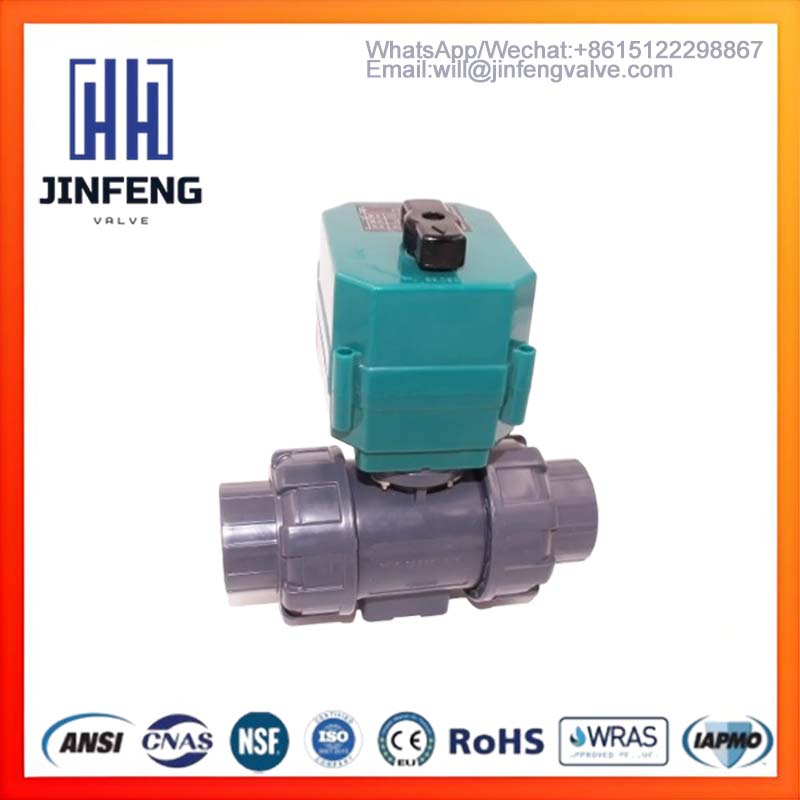

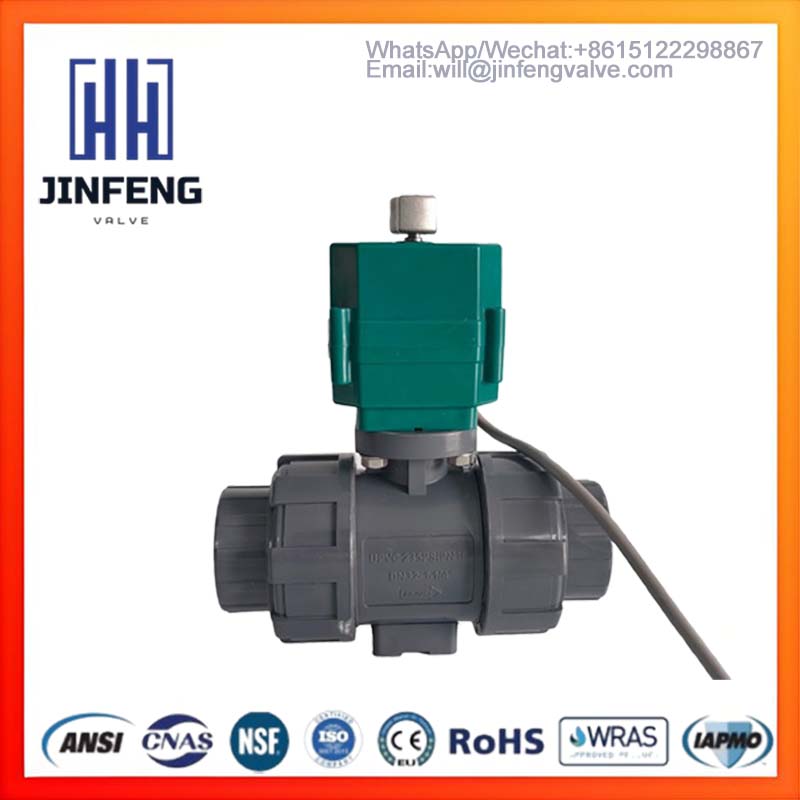

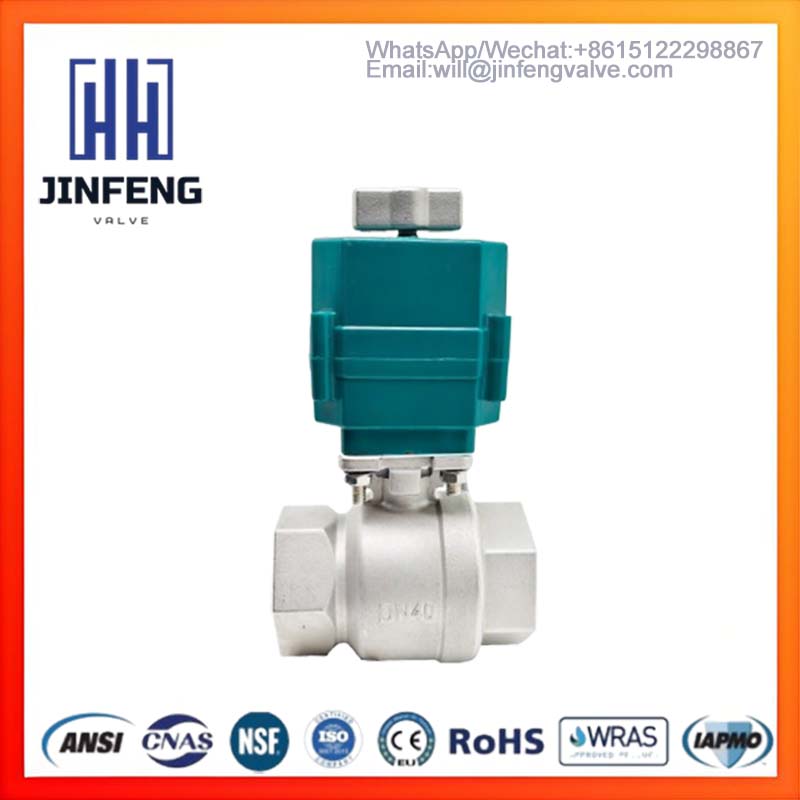

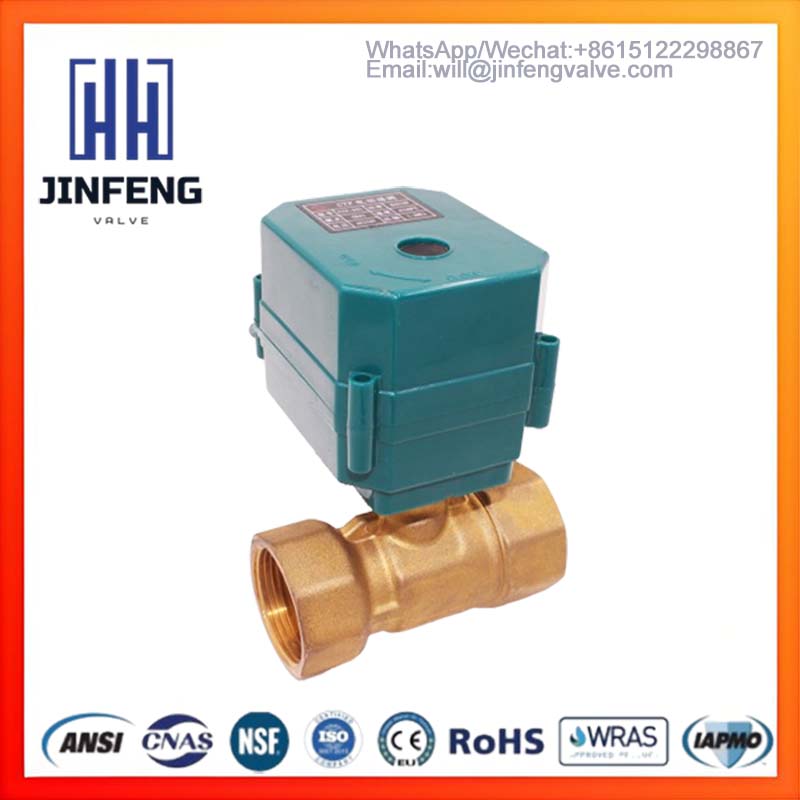

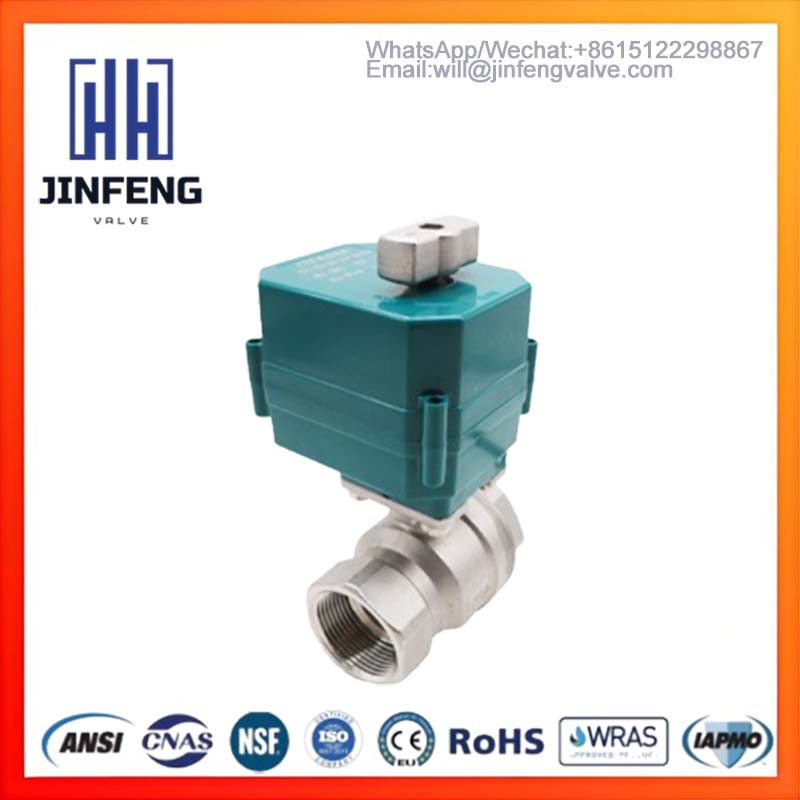

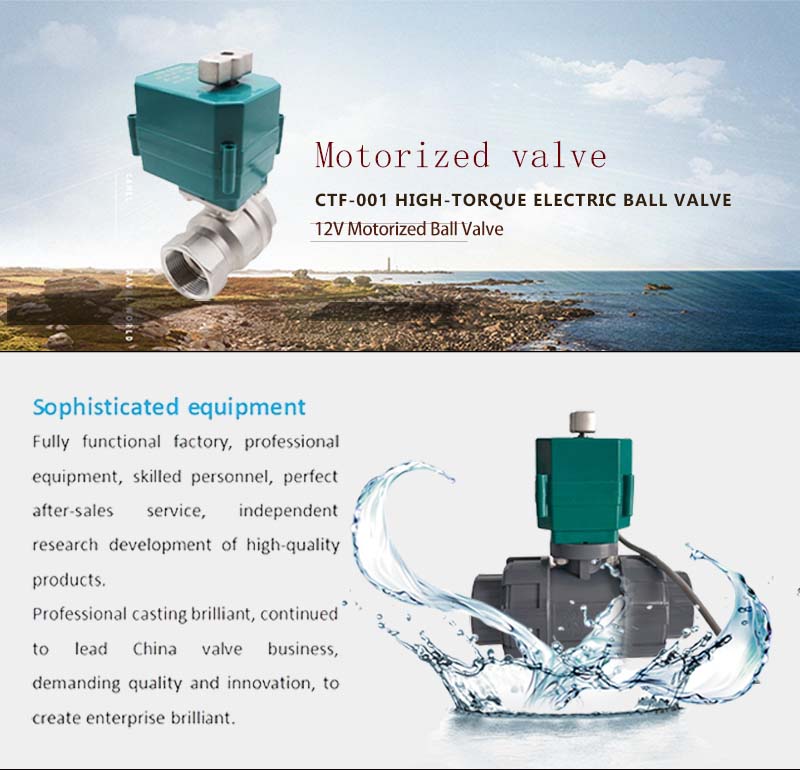

High Torque 12V Motorized Ball Valve - 10NM

Product Features

1. The motorized ball valve actuator features a compact design with all-metal gear transmission, delivering reliable performance and output torque up to 10NM. It serves as the optimal choice for connecting miniature electric valves to industrial-grade valves.

2. The motorized ball valve employs a floating seal design, ensuring zero leakage and suitability for highly contaminated environments.

3. Bidirectional/tridirectional electric ball valves incorporate an electromechanical dual-limit design, delivering precise positioning and high operational stability.

4. Ball valve-to-actuator connections comply with ISO 5211 standards, featuring F03 and F05 flange types for flexible valve system configuration.

---

12V Wiring Diagram for Motorized Ball Valve

CR01（two wires and reverse polarity) Voltage: DC3-6V/DC12V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR02 (three wires two wires control) Voltage: DC3-6V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V



1. Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V



1. SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.





CR05 (five wires, micro controller with feedback signal) Voltage: DC3-6V/DC12V/DC24V



1.Connecting SW to OPEN, then valve open, getting the position and OLS connected, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
2.Connecting SW and CLOSE , then valve close, getting the position and CLS connected, the controller tested and find the signal of ACLS, the valve remains fully close position, mean while power off automatically.

---

Application Scenarios

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

---

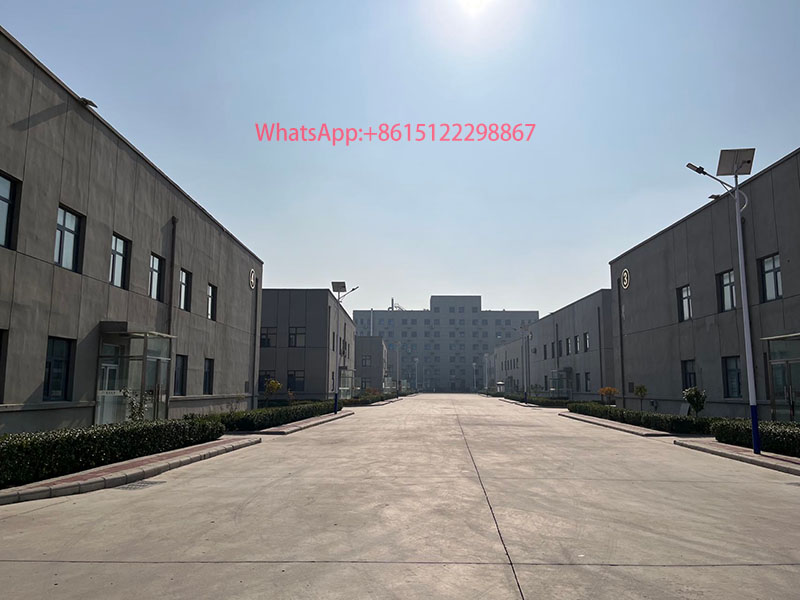

About us-TIANJIN JINFENG VALVE CO.,LTD.

Tianjin JINFENG Valve Co., Ltd. is a leading manufacturer specializing in motorized and actuated valves, and stands as one of the pioneering companies in Tianjin's valve industry. With a facility spanning 50,000 square meters, JINFENG operates ten independent production workshops, supporting highly efficient and scalable manufacturing processes.

The company has been recognized with numerous letters of commendation from municipal government departments in Tianjin. Our certifications include ISO9001, CE, RoHS, NSF61, among others, and our products have been exported to various countries and regions across the globe.

---

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.

---
