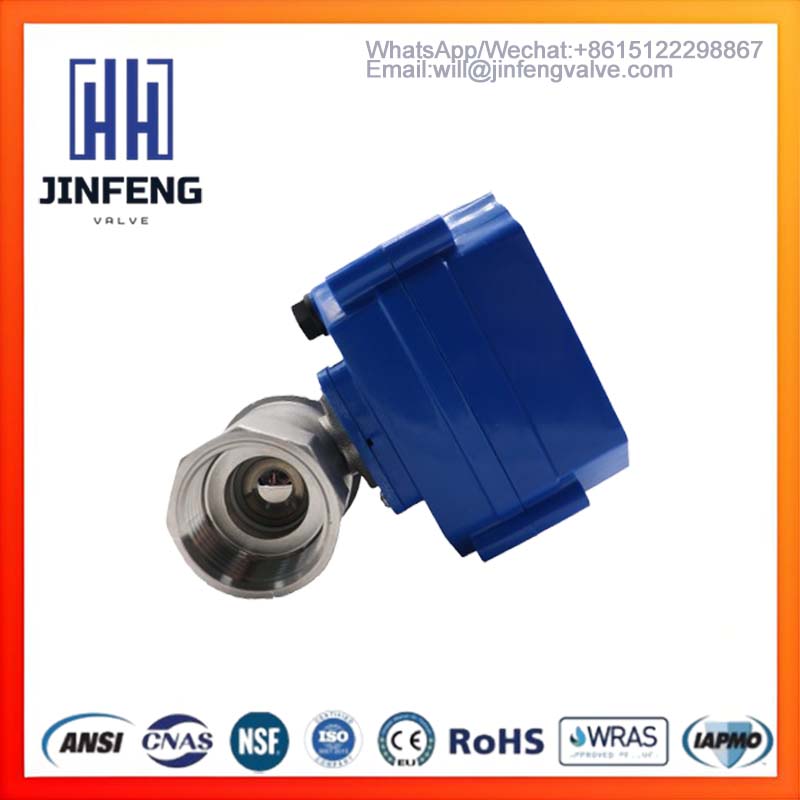

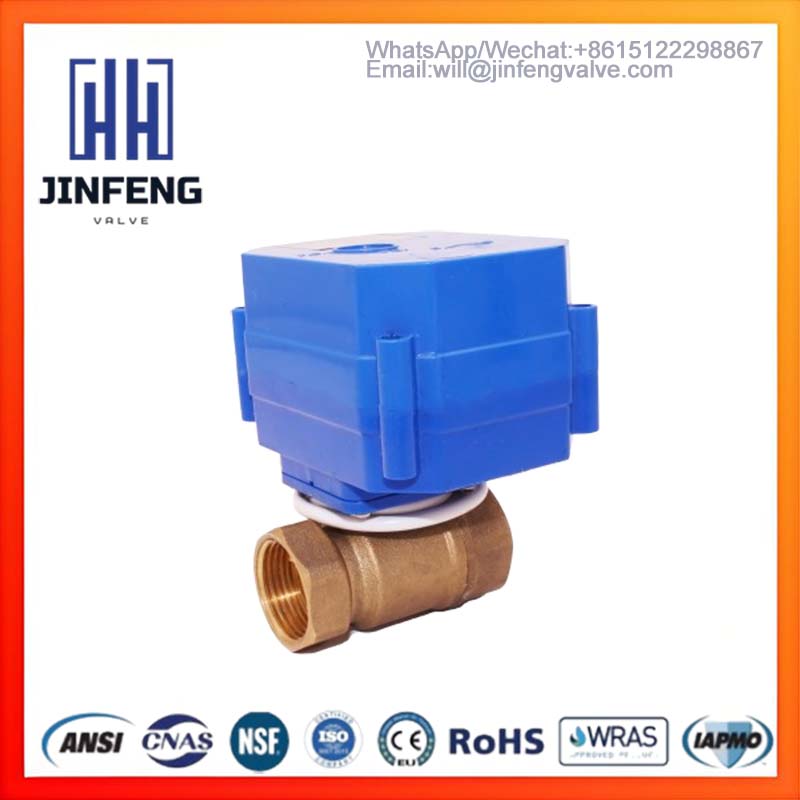

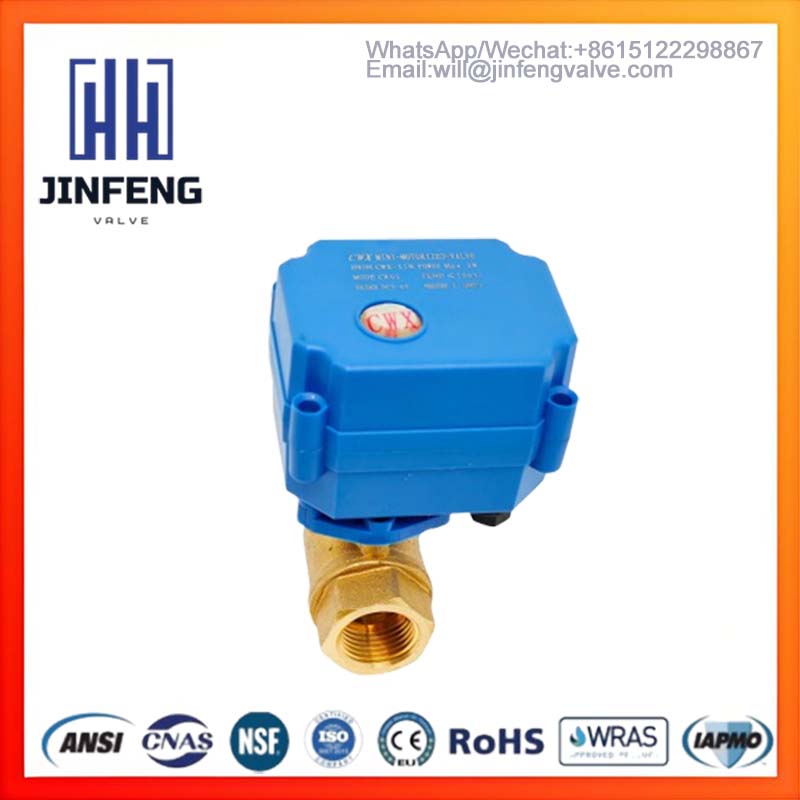

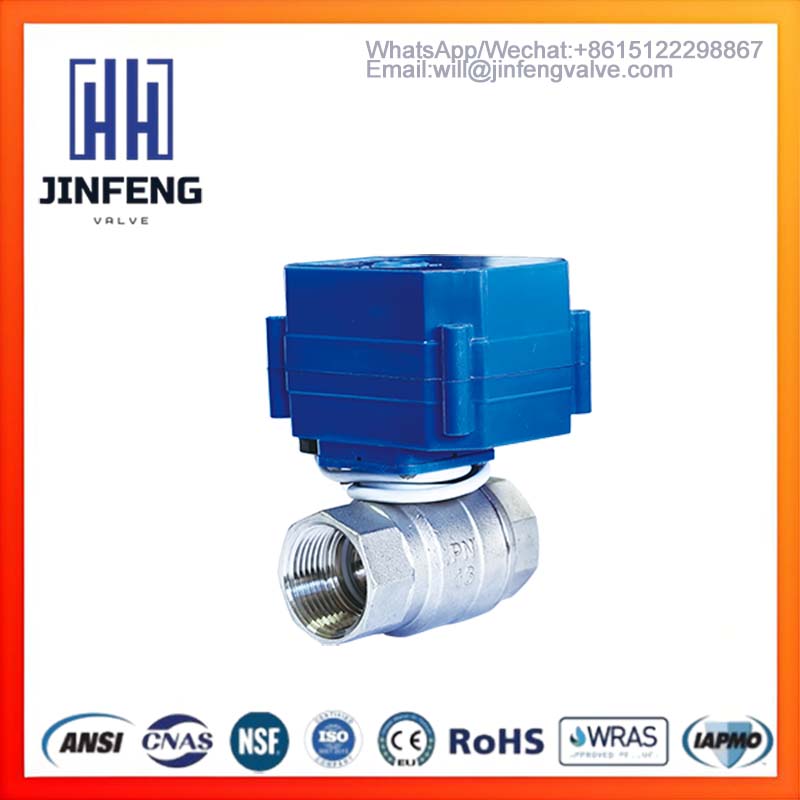

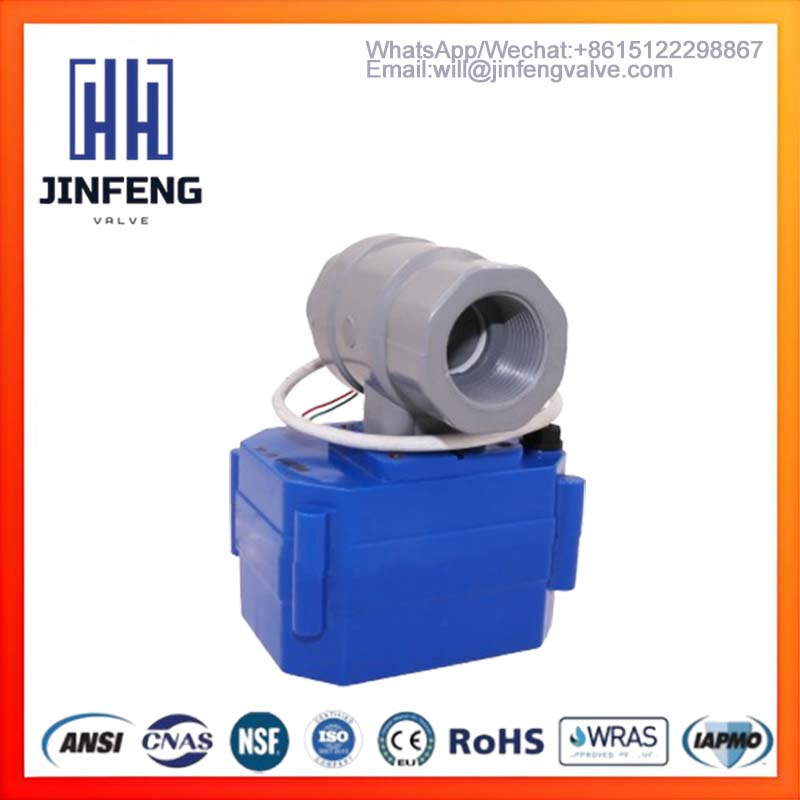

24V Motor-Operated Valves​ – High Torque Mini Motorized Ball Valve

Product Features

1. For motorized ball valves with 2-wire reverse polarity and 3-wire models, the valve remains de-energized in both fully open and fully closed positions. Other models may consume minimal power when fully open, while 5-wire models require energy consumption in the closed position to maintain indicator light operation. Refer to the specification manual for detailed parameters.

2. Electromechanical limit switch design ensures precise positioning, high consistency, and stable actuator operation.

3. Automatic power-off at fully open/closed positions, with a service life of up to 100,000 cycles.

4. High-torque actuator drives larger valve bodies.

5. Float-type structure delivers leak-free, high-flow bidirectional operation.

6. IP65 protection rating for use in humid environments.

---

24V Motorized Valve Wiring Diagram

CR01（two wires and reverse polarity) Voltage: DC3-6V/DC12V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR02 (three wires two wires control) Voltage: DC3-6V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V



1. Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V



1. SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.





CR05 (five wires, micro controller with feedback signal) Voltage: DC3-6V/DC12V/DC24V



1.Connecting SW to OPEN, then valve open, getting the position and OLS connected, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
2.Connecting SW and CLOSE , then valve close, getting the position and CLS connected, the controller tested and find the signal of ACLS, the valve remains fully close position, mean while power off automatically.

---

Applications

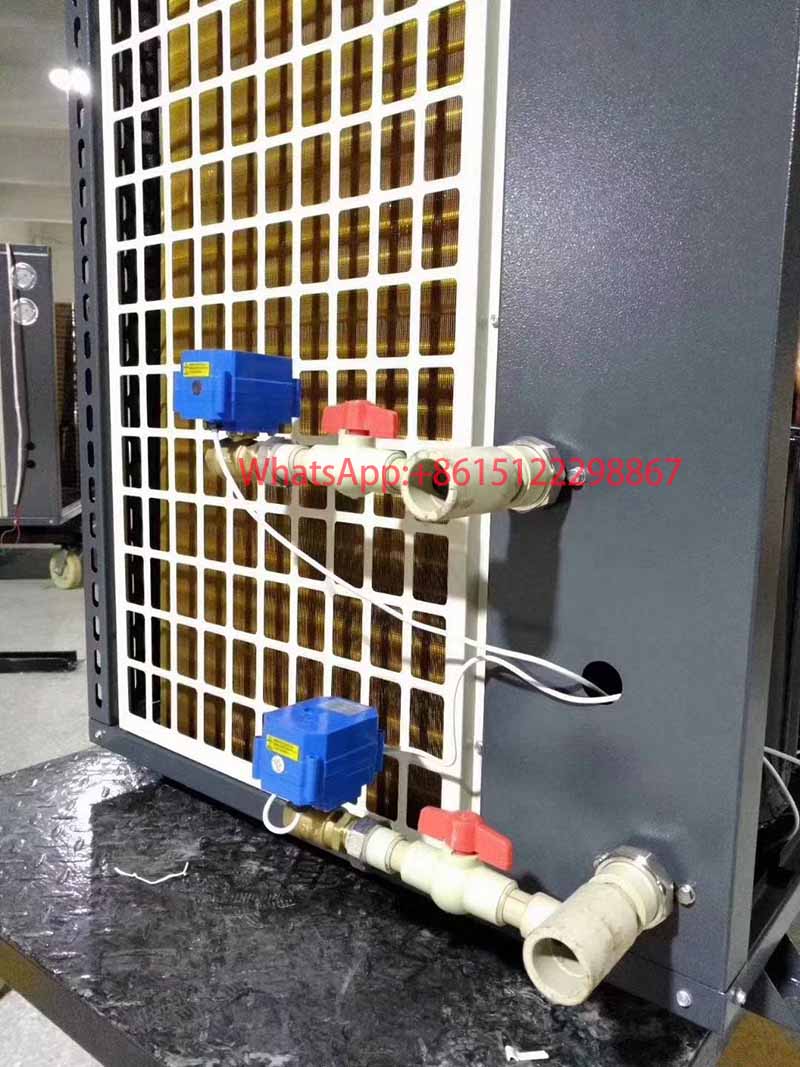

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

---

About us-TIANJIN JINFENG VALVE CO.,LTD.

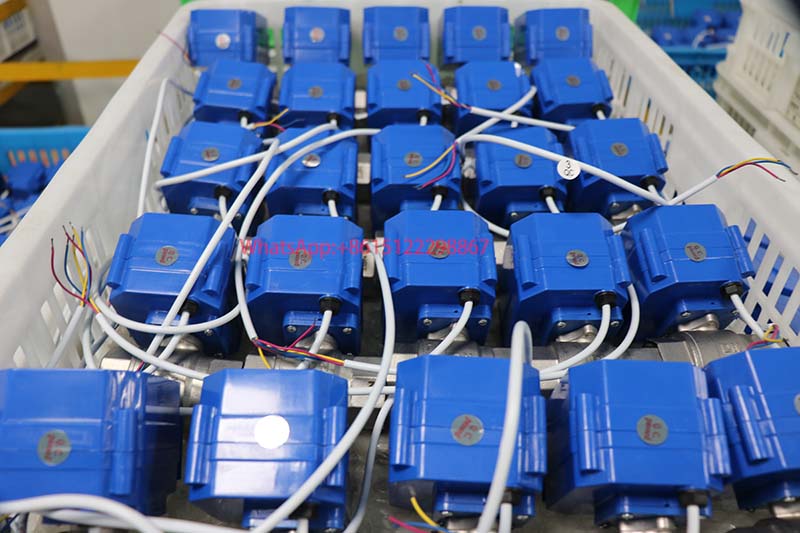

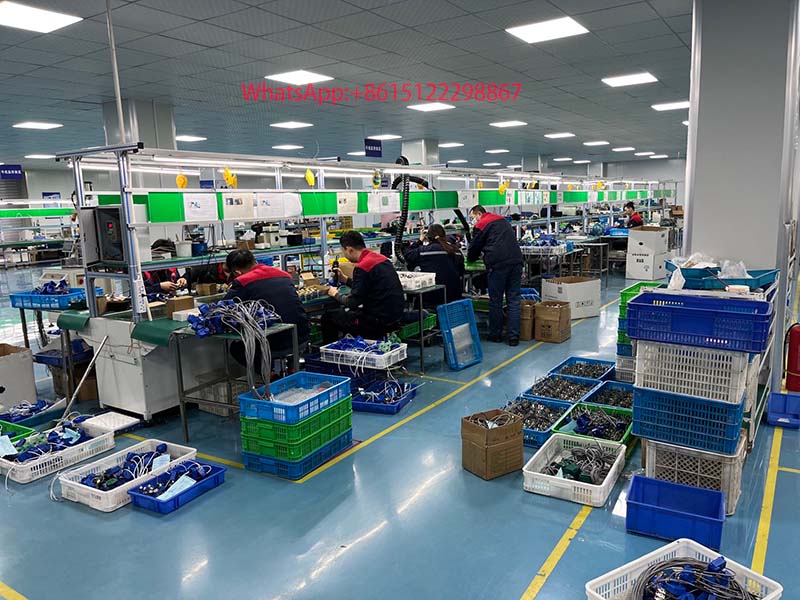

Tianjin Jinfeng Valve Co., Ltd. is a specialized manufacturer of motorized valves. As one of the pioneering enterprises in Tianjin's valve industry, the motorized valve factory occupies 50,000 square meters and features ten independent production workshops, supporting efficient and scalable manufacturing processes.

The company has received multiple commendations from Tianjin municipal government departments and holds international certifications including ISO9001, CE, RoHS, and NSF61. Its products are exported to numerous countries and regions worldwide.

---

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.

---
