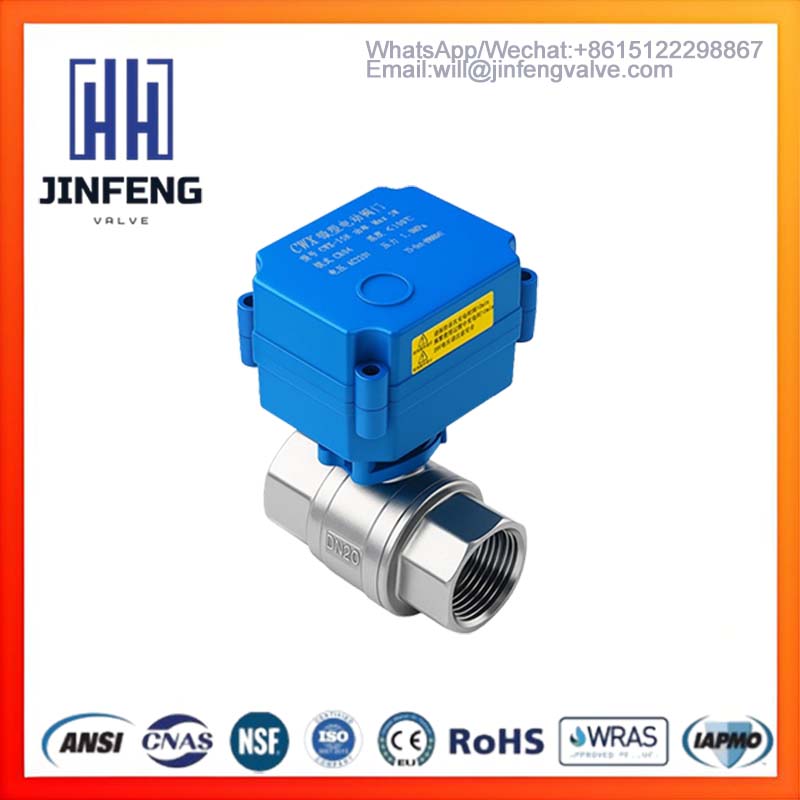

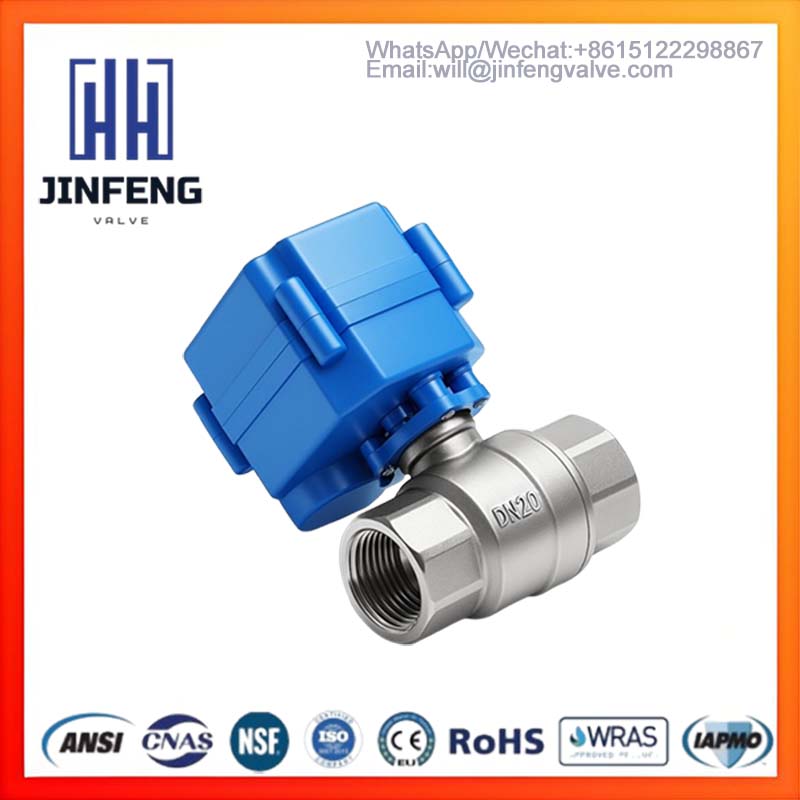

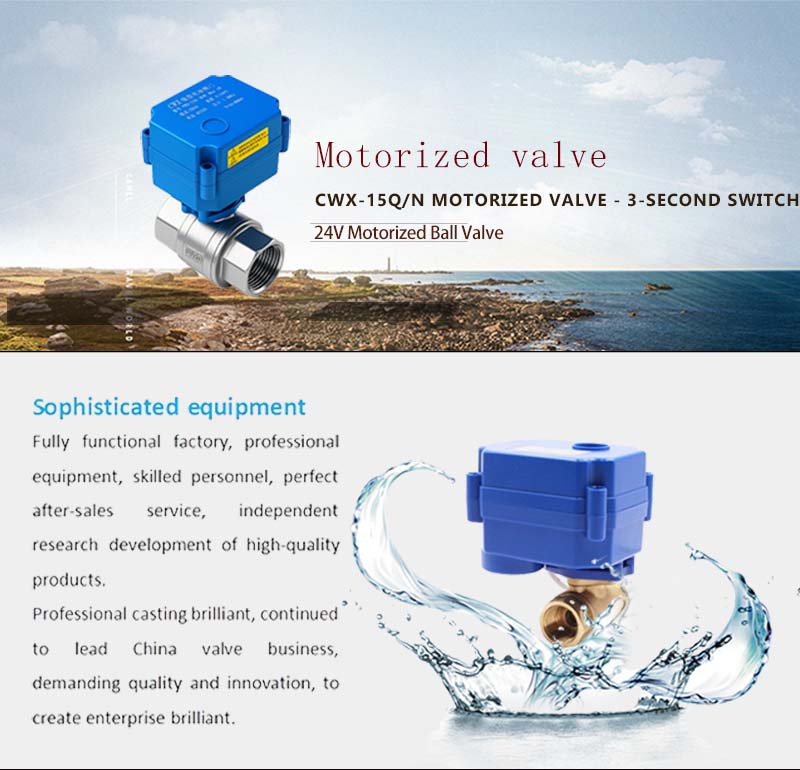

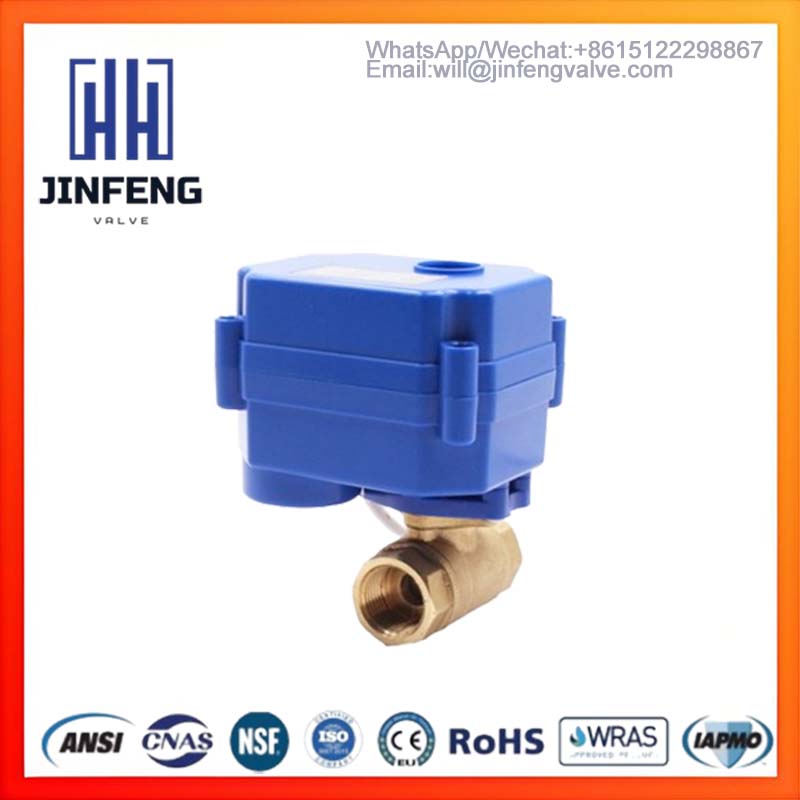

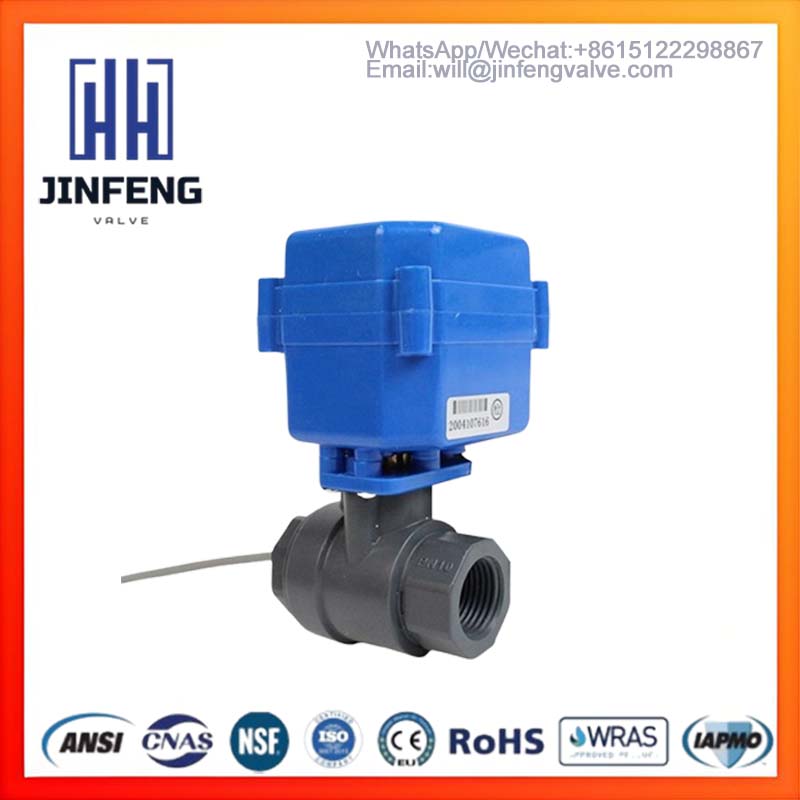

24V Motorized Ball Valve – Fast ON/OFF Motorized Water Valve

Product Features

1. The metal gearbox within the actuator features POM gear design, ensuring low noise and high stability.

2. Automatic power-off function at fully open/closed positions prevents overheating and extends service life.

3. Ultra-long service life: capable of over 100,000 switching cycles.

4. Electromechanical limit switch design ensures precise positioning and prevents continuous gear rotation.

5. Motor-operated valves support multi-angle installation for easy setup and flexible spatial layout.

6. Float ball structure eliminates leakage, suitable for heavily contaminated environments.

---

24V Motorized Valve Wiring Diagram

CR01（two wires and reverse polarity) Voltage: DC3-6V/DC12V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR02 (three wires two wires control) Voltage: DC3-6V/DC9-24V



1. Connect SW to OPEN, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Connect SW to CLOSE, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR03 (three wires one wire control) Voltage: DC3-6V/DC12V/DC9-24V/ADC9-24V/AC85-265V



1. Connect SW, the valve open, getting the position and automatically power off, the valve remains fully open position.
2.Disconnect SW, the valve close, getting the position and automatically power off, the valve remains fully closed position.





CR04 (two wires and fail-safe/power-off return) Voltage: ADC9-24V/AC85-265V



1. SW connect, the valve open/close, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnect, the valve close/open, getting the position and power off automatically, the valve remains fully close/open position.





CR05 (five wires, micro controller with feedback signal) Voltage: DC3-6V/DC12V/DC24V



1.Connecting SW to OPEN, then valve open, getting the position and OLS connected, the controller tested and find the signal of AOLS, the valve remains fully open position, mean while power off automatically.
2.Connecting SW and CLOSE , then valve close, getting the position and CLS connected, the controller tested and find the signal of ACLS, the valve remains fully close position, mean while power off automatically.

---

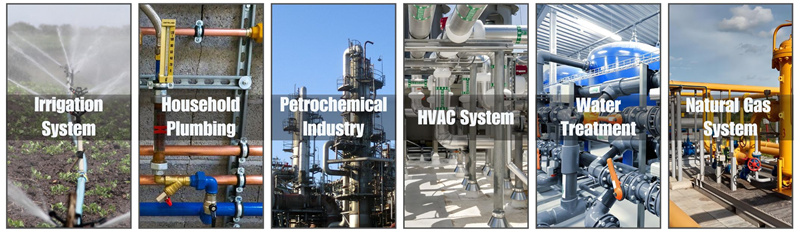

Applications

Our motorized valves are used in:

1.Water treatment, irrigation, drainage, wastewater treatment systems, etc.

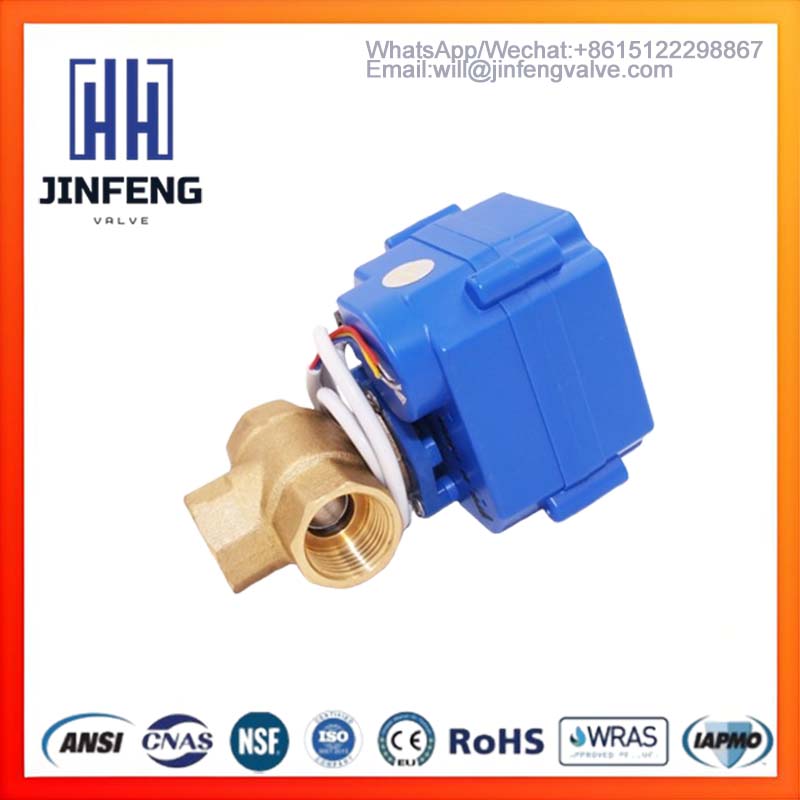

2.HVAC and fire protection engineering

3.Campus water conservation, automatic control equipment, industrial automotive equipment

4.Water-saving instruments, drinking water equipment, etc.

5.Replacement of malfunctioning solenoid valves

---

About us-TIANJIN JINFENG VALVE CO.,LTD.

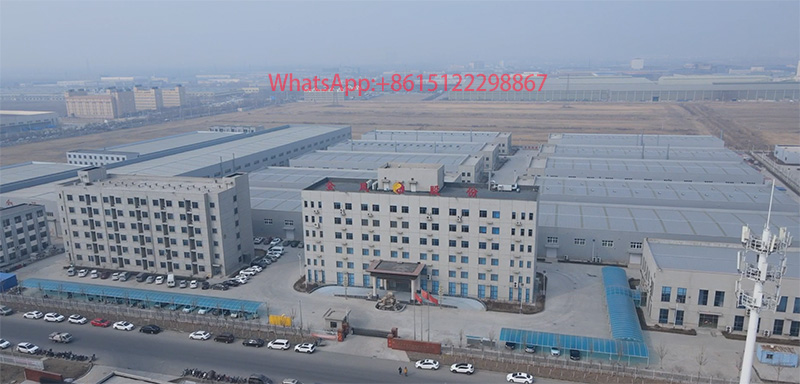

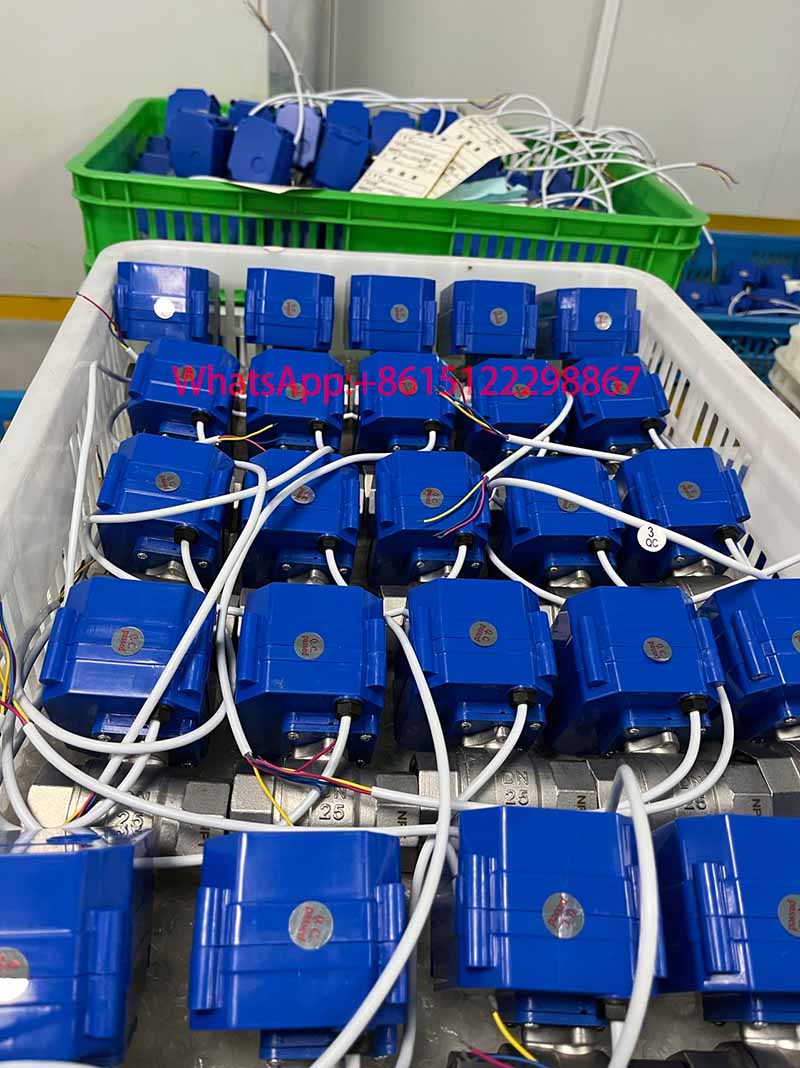

Tianjin Jinfeng Valve Co., Ltd. is a specialized manufacturer of motorized valves. As one of the pioneering enterprises in Tianjin's valve industry, the motorized valve factory occupies 50,000 square meters and features ten independent production workshops, supporting efficient and scalable manufacturing processes.

The company has received multiple commendations from Tianjin municipal government departments and holds international certifications including ISO9001, CE, RoHS, and NSF61. Its products are exported to numerous countries and regions worldwide.

---

FAQ

1. Are you manufacturer or trading company?

We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?

T/T,Paypal,Western Union, Moneygram, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?

Our MOQ is 1piece.

4. What about the delivery time?

Sample need about 3 working days, large order delivery time will according to your quantity.

5.Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.

6.Where is the factory located?

Tianjin city and welcome to visit our factory.

---
